| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,698 pcs
|
8698 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Weight |

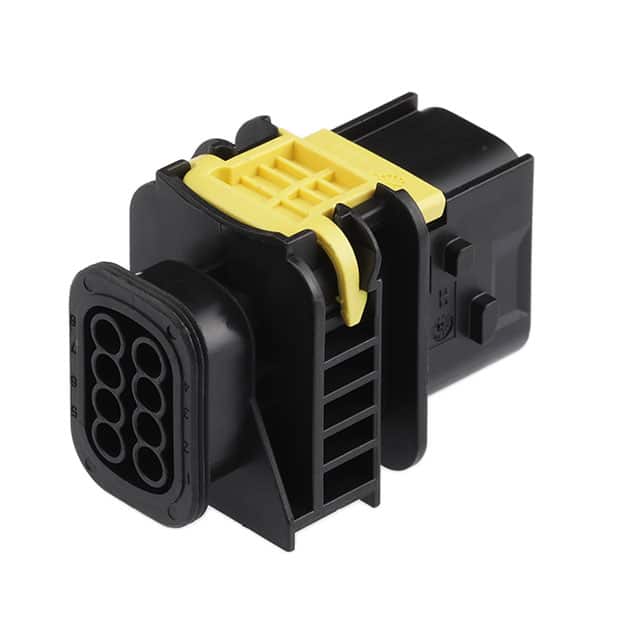

The 1-1564512-1 is a rectangular plug housing from TE Connectivity's Heavy Duty Sealed Connector Series, Group C. It offers 8 positions arranged in 2 rows with a 4.00mm pitch and 6.00mm row spacing. The housing is designed for free hanging (in-line) mounting and uses a slide-on fastening mechanism. Contact termination is crimp type, and the housing is sealed to protect against harsh environments. It is rated for an operating temperature range of -40°C to 140°C and weighs 18.2 grams. The housing is black in color and accepts 1.6mm x 0.6mm tab contacts. This is a housing only; contacts must be ordered separately. The sealed construction makes it suitable for heavy duty applications such as automotive and industrial power distribution.
It has 8 positions arranged in 2 rows.
The pitch is 4.00mm (0.157 inches).
It is free hanging (in-line) mounting.
It supports crimp termination.
The operating temperature range is -40°C to 140°C.
Yes, it is a sealed housing designed for harsh environments.
It weighs 18.2 grams.
