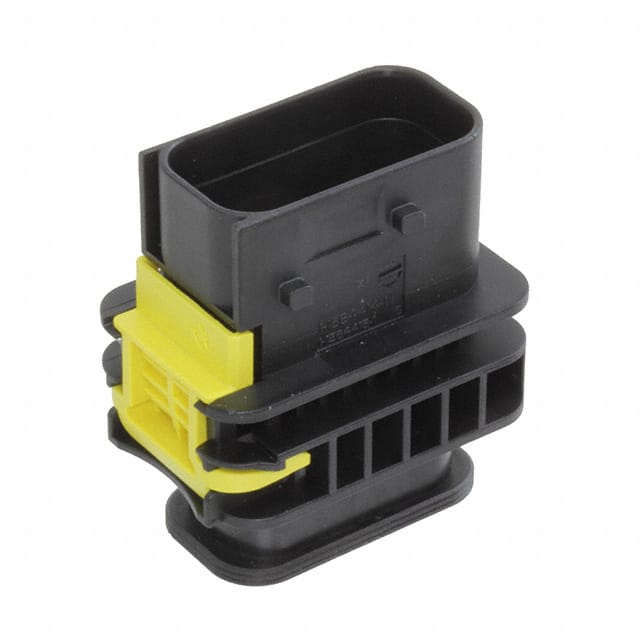

1-1564414-1 TE Connectivity 1-1564414-1 is a 12-position rectangular plug housing with 4.00mm pitch, designed for panel mount applications. It features a sealed, slide-on fastening system and accepts 1.6mm x 0.6mm tab contacts.
Mfr Part #:

1-1564414-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-1564414-1 is a 12-position rectangular plug housing with 4.00mm pitch, designed for panel mount applications. It features a sealed, slide-on fastening system and accepts 1.6mm x 0.6mm tab contacts.
✓ Total Stock: 7,332 pcs

1-1564414-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
7,332 pcs
On Request
7332 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1564414-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Features
Halogen Free
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
Storage Temperature
Tape & Reel
View Similar Products (0)

1-1564414-1 Description

Short technical summary and product information.

The TE Connectivity 1-1564414-1 is a 12-position rectangular plug housing from the Heavy Duty Sealed Connector Series, Group D. It features a 4.00mm pitch and 6.00mm row spacing, making it suitable for multi-wire connections in demanding environments.



This housing is designed for panel mounting with a slide-on fastening type, ensuring secure mating. It accepts 1.6mm x 0.6mm tab contacts with crimp termination, providing reliable electrical connections. The housing is sealed, offering protection against environmental contaminants.



Constructed with a black housing, the connector operates over a wide temperature range from -40°C to 140°C. The part weighs 18.65 grams and is part of the Heavy Duty Sealed Connector Series, Group D, known for robust performance in industrial and automotive applications.

1-1564414-1 Quick Information

Product Type: Rectangular Connector Housing
Series: Group D
Canonical Name: TE Connectivity Heavy Duty Sealed Connector Series, Group D 12 Position Plug Housing
Subcategory: Plug Housing

1-1564414-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

1-1564414-1 Features

  • 12-position rectangular plug housing.
  • 4.00mm pitch with 6.00mm row spacing.
  • Panel mount with slide-on fastening.
  • Sealed design for environmental protection.
  • Accepts 1.6mm x 0.6mm tab contacts.

1-1564414-1 Applications

  • Ideal for heavy duty sealed connections.
  • Suitable for industrial control systems.
  • Used in automotive wiring applications.
  • Designed for harsh environment installations.

1-1564414-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the TE Connectivity 1-1564414-1 connector housing?

The pitch is 4.00mm.

How many positions does the 1-1564414-1 housing have?

It has 12 positions arranged in 2 rows.

What type of mounting does the 1-1564414-1 use?

It is designed for panel mounting.

What is the operating temperature range of this connector housing?

The operating temperature range is -40°C to 140°C.

Is the 1-1564414-1 connector housing sealed?

Yes, it features a sealed design.
