| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

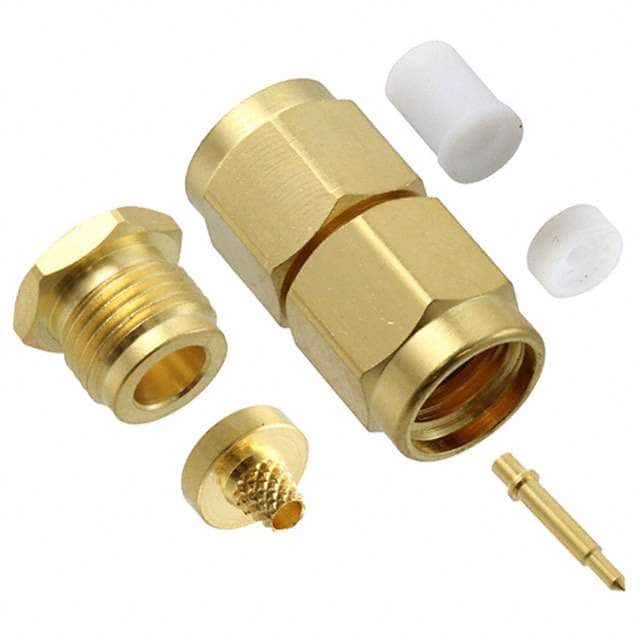

The TE Connectivity 1-1478908-0 is an SMA plug connector with a male pin center contact. It is designed for 50 Ohm characteristic impedance and supports frequencies up to 18 GHz, making it suitable for RF applications. The connector features a solder termination for the center contact and a clamp for shield termination, ensuring reliable electrical connections. Threaded fastening provides secure mating. The connector is mounted in-line and is free-hanging, accommodating cable groups RG-174A, 188A, and 316. The center contact is made of brass, and the housing is gold-plated for corrosion resistance and conductivity. This part is cross-referenced as Digi-Key part 1-1478908-0-ND.
Free hanging (in-line).
50 Ohm.
18 GHz.
Solder.
RG-174A, 188A, 316.
Threaded.
