1-1478763-5 TE Connectivity 1-1478763-5 is a two-piece D-Sub backshell with 15 positions and 45° cable exit angle. It is shielded and made of nickel-plated zinc.
Mfr Part #:

1-1478763-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-1478763-5 is a two-piece D-Sub backshell with 15 positions and 45° cable exit angle. It is shielded and made of nickel-plated zinc.
✓ Total Stock: 100 pcs

1-1478763-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1478763-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

1-1478763-5 Description

Short technical summary and product information.

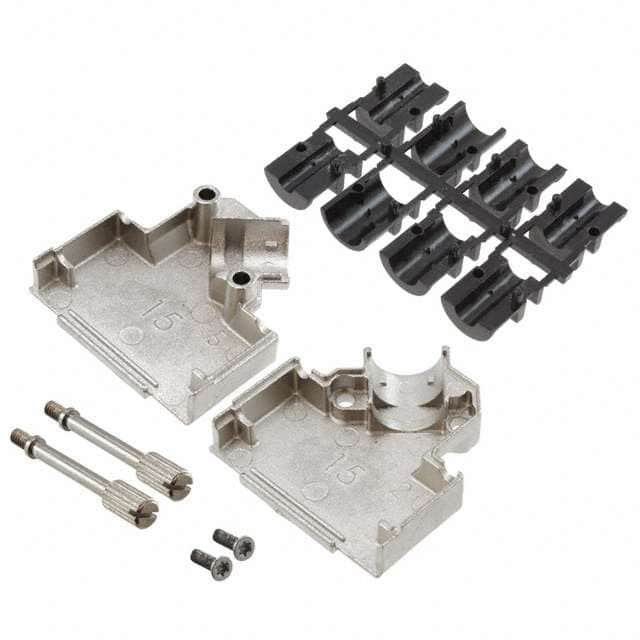

The TE Connectivity 1-1478763-5 is a two-piece D-Sub connector backshell designed for 15-position connectors. It features a 45° cable exit angle and is fully shielded to provide EMI protection for sensitive signal lines. The backshell is constructed from nickel-plated zinc, offering durability and corrosion resistance in a silver finish.



This accessory includes assembly hardware, grommets, and a strain relief mechanism, making it suitable for terminating round cables. It also includes mating screws (4-40) to secure the backshell to the connector. The shielding ensures reliable performance in electrically noisy environments.



For compliance, this backshell is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). Note that compliance data is unverified and should be confirmed with the manufacturer. No datasheet or manufacturer page is currently linked.

1-1478763-5 Quick Information

Product Type: D-Sub Connector Backshell
Canonical Name: TE Connectivity 1-1478763-5 D-Sub Backshell, 15 Position, 45° Cable Exit, Shielded
Subcategory: D-Sub Backshells

1-1478763-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-1478763-5 Features

  • 15 position D-Sub backshell.
  • 45° cable exit angle.
  • Shielded construction for EMI protection.
  • Nickel-plated zinc material.
  • Includes strain relief and grommets.

1-1478763-5 Applications

  • Protecting D-Sub cable connections.
  • Providing strain relief for round cables.
  • Shielding sensitive data cables.
  • Securing cable assemblies with 4-40 screws.
  • Used in industrial and telecom equipment.

1-1478763-5 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this backshell support?

15 positions.

What is the cable exit angle?

45°.

Is this backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Metal, Zinc with nickel plating.

What type of accessory is this?

Two piece backshell.

Does it include hardware?

Yes, assembly hardware, grommets, and strain relief.

What cable type is compatible?

Round cable.
