1-1478762-5 TE Connectivity D-Sub backshell for 15-position connectors, 180° cable exit, shielded, zinc construction with nickel plating.
Mfr Part #:

1-1478762-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity D-Sub backshell for 15-position connectors, 180° cable exit, shielded, zinc construction with nickel plating.
✓ Total Stock: 354 pcs

1-1478762-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
354 pcs
On Request
354 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1478762-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

1-1478762-5 Description

Short technical summary and product information.

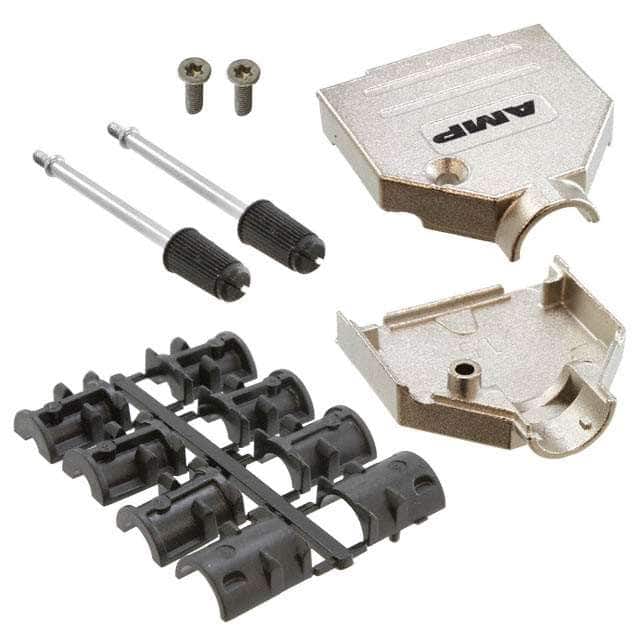

The TE Connectivity 1-1478762-5 is a two-piece backshell designed for D-Sub connectors with 15 positions. It features a 180° cable exit angle, accommodating round cable types. The backshell is constructed from metal zinc with a nickel plating, providing a silver appearance. The design includes shielding for EMI protection. Hardware includes assembly hardware, grommets, and strain relief, and mating screws (4-40) are included for secure connection.



This backshell is suitable for applications requiring reliable cable management and strain relief. The shielded construction helps reduce electromagnetic interference in data and signal transmission. The backshell's design supports cable strain relief and secure assembly to the connector.

1-1478762-5 Quick Information

Product Type: Backshell
Canonical Name: 1-1478762-5 TE Connectivity D-Sub Backshell, 15 Position, 180° Cable Exit, Shielded
Subcategory: D-Sub Backshell

1-1478762-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-1478762-5 Features

  • Two-piece shielded backshell construction.
  • 15-position D-Sub connector compatibility.
  • 180° cable exit angle for round cables.
  • Zinc construction with nickel plating.
  • Includes mating screws 4-40 and strain relief hardware.

1-1478762-5 Applications

  • Use in D-Sub connector cable assemblies.
  • Suitable for EMI-sensitive industrial equipment.
  • Ideal for data communication cable management.
  • Provides strain relief for round cables.

1-1478762-5 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does this backshell support?

This backshell supports 15 positions.

What is the cable exit angle?

The cable exit angle is 180°.

Is this backshell shielded?

Yes, this backshell is shielded.

What material is the backshell made of?

The backshell is made of metal zinc with nickel plating.

1-1478762-5 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
5-1478762-2
5-1478762-2
TE Connectivity
CONN BACKSHELL 15POS 180DEG SHLD
View Part
