| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

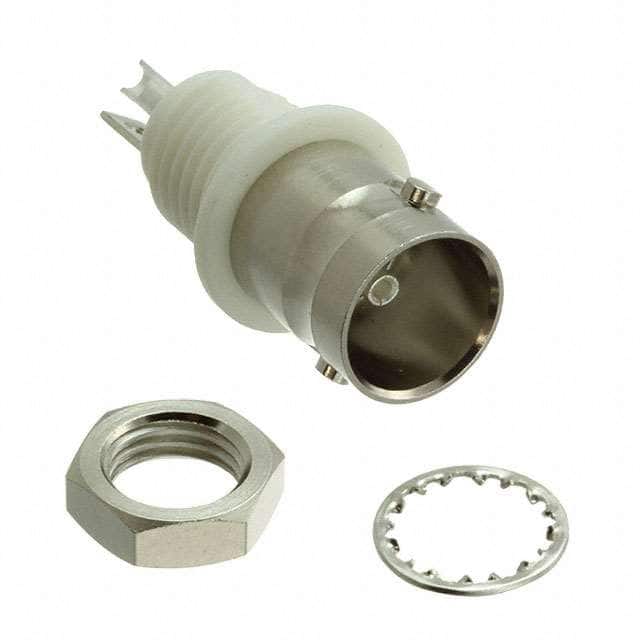

This TE Connectivity BNC connector (part number 1-1478201-0) is a 75 Ohm jack with a female socket contact. It is designed for panel mount applications using a bulkhead rear side nut mounting feature. The connector uses a bayonet lock fastening type for secure mating.
The center contact is made of brass and terminated via a solder cup, while the shield is terminated by soldering. The housing is silver and white. This connector is isolated and supports frequencies up to 1 GHz.
Typical applications include RF signal connections in telecommunications, broadcast, and test equipment where 75 Ohm impedance is required. The panel mount design allows for permanent installation in enclosures or bulkheads.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.80 | $5.80 |
| 10+ | $4.93 | $4.93 |
| 25+ | $4.62 | $4.62 |
| 50+ | $4.40 | $4.40 |
| 100+ | $4.19 | $4.19 |
| 250+ | $3.93 | $3.93 |
| 500+ | $3.83 | $3.83 |
| 1,000+ | $3.56 | $3.56 |
| 2,500+ | $3.35 | $3.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
75 Ohm.
1 GHz.
Panel mount with bulkhead rear side nut.
Solder cup.
Bayonet lock.
Yes, it is isolated.
