| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Gender | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

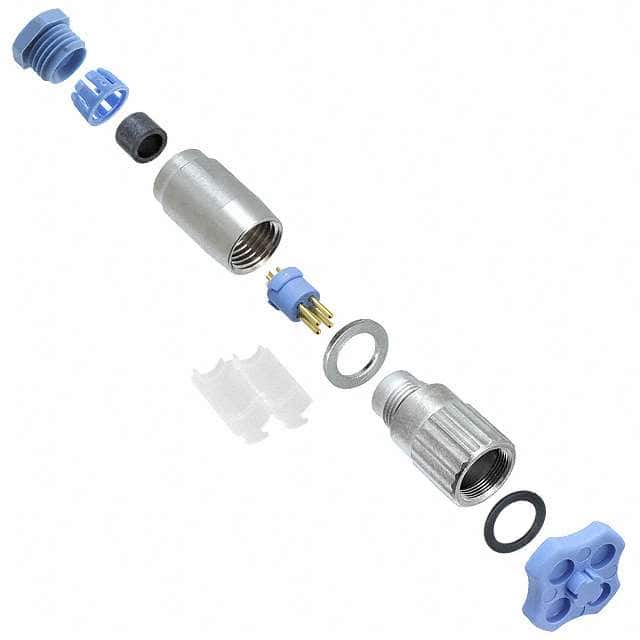

The TE Connectivity 1-1437719-8 is a circular connector plug assembly designed for reliable signal and power connections in industrial and harsh environments. It features a metal shell with brass construction and a Tribor finish, providing durability and corrosion resistance. The connector is shielded and offers an IP65 ingress protection rating, making it suitable for applications where dust tightness and water resistance are required.
This plug has 4 male pin contacts arranged in a keyed orientation to prevent misalignment. The threaded coupling mechanism ensures a secure and vibration-resistant connection. Each contact is terminated via solder cups, allowing for straightforward wire attachment. The connector also includes a built-in strain relief feature to protect the cable from mechanical stress.
Electrically, the connector is rated for 3 amperes continuous current and up to 60 VAC. Operating temperature range is -40°C to 85°C. The insert material meets UL94 V-2 flammability rating. The free-hanging (in-line) mounting style facilitates flexible installation in panel-to-cable or cable-to-cable applications.
It has 4 positions (male pins).
The current rating is 3 amperes.
The voltage rating is 60 VAC.
Free hanging (in-line) with solder cup termination.
The connector has an IP65 rating, meaning it is dust tight and protected against water jets.
-40°C to 85°C.
Threaded coupling.
