| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
938 pcs
|
938 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
938 pcs
|
938 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Flammability of Materials | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Life | |
| Operating Temperature | |
| Outline | |
| Rated Current (Minimum/Maximum) | |
| Rated Power | |
| Rated Voltage (Minimum/Maximum) | |
| Switch Function | |
| Switching Travel | |
| Termination Style |

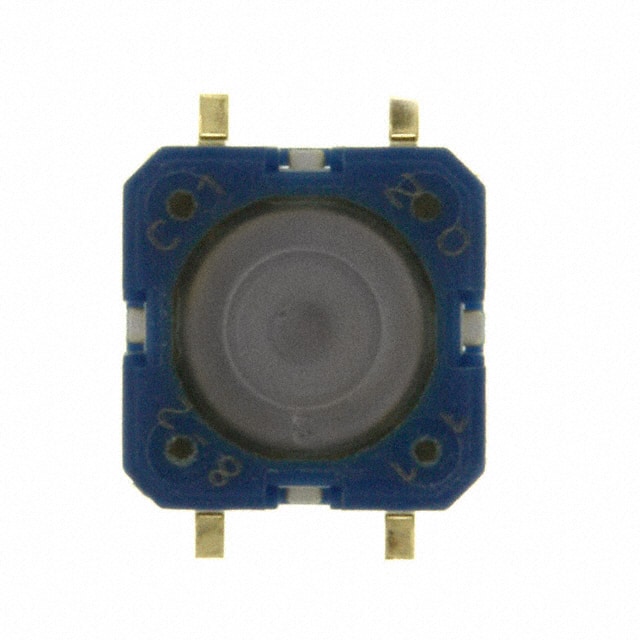

The RAFI 1.14.100.503/0000 is a tactile switch designed for reliable key click and excellent switching reliability. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
This switch is suitable for surface mounting with gull wing termination, making it compatible with automatic SMT assembly machines. It has an actuator height of 5.00mm and an outline of 8.40mm x 8.40mm. The operating force is 330gf, and it is non-illuminated.
Electrically, it is rated for 0.1A at 42VAC/DC with a maximum power rating of 1W (ohmic load). The operating temperature range is from -40°C to 80°C. The switch offers a contact resistance of 100 mΩ maximum and an insulation resistance of 1 GΩ minimum. It has a mechanical operating life of 1,000,000 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RAFI 1.14.100.503/0000 tactile switch has a SPST-NO circuit.
The contact rating is 0.1A at 42VAC/DC.
The operating temperature range is -40°C to 80°C.
Yes, it is RoHS3 Compliant.
