| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Board Pitch | |
| Cable Pitch | |
| Cable Termination | |
| Cable Termination Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Termination Style |

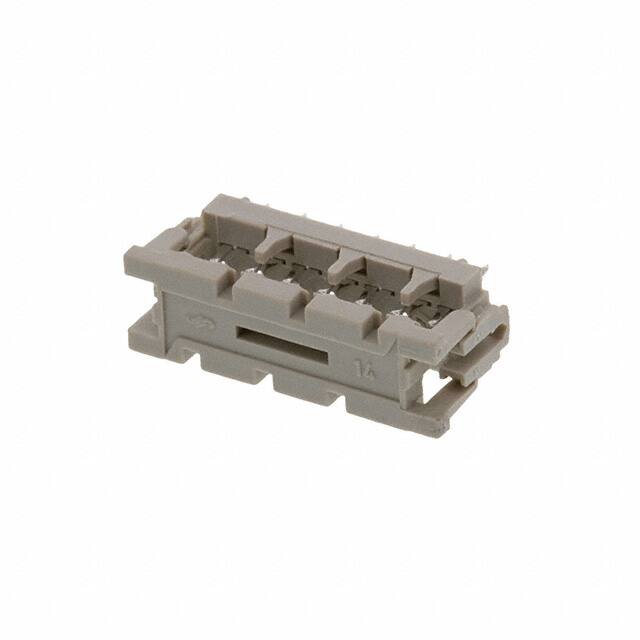

The 1-1393536-4 is a 14-position DIP header IDC connector from TE Connectivity, designed for board-in direct wire-to-board applications. It features a 2-row configuration with 2.54mm row spacing and 1.27mm cable pitch, enabling reliable connection to ribbon cables via IDC termination. The connector offers through hole press-fit mounting for secure PCB attachment. Contacts are finished with tin (5µm thickness) for good conductivity and solderability. Additional features include feed through and strain relief to enhance mechanical stability. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for various electronic assemblies requiring compact, reliable wire-to-board connections.
14 positions in 2 rows.
0.100 in (2.54 mm).
Through hole, press-fit.
Tin with 5.00 µm thickness.
IDC (Insulation Displacement Connection).
Feed through and strain relief.
0.050 in (1.27 mm).
