| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
264 pcs
|
264 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

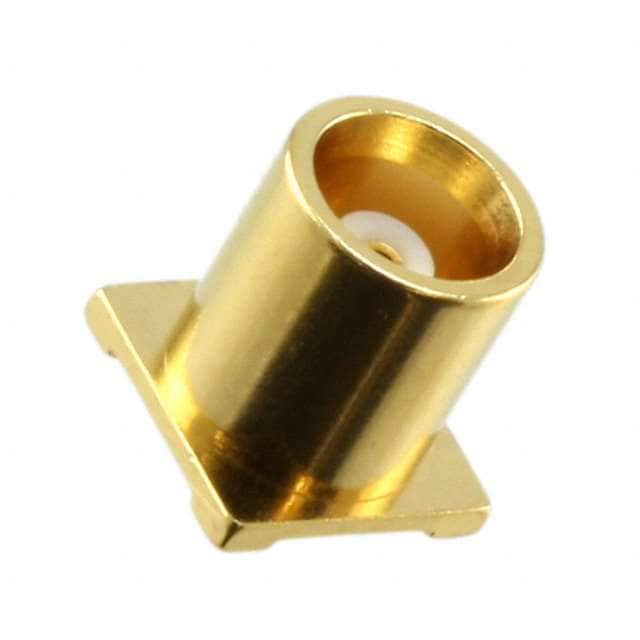

The TE Connectivity 1-1337582-0 is an MCX coaxial connector designed for RF applications requiring a compact, snap-on interface. This jack, female socket connector offers a characteristic impedance of 50 Ohms and supports frequencies up to 6 GHz, making it suitable for a wide range of wireless and telecommunications systems.
The connector features a gold-plated phosphor bronze center contact and a gold housing, ensuring reliable signal integrity and corrosion resistance. Termination is via solder for both the center contact and shield, and the connector is designed for surface mount mounting, facilitating automated assembly processes.
With a snap-on fastening mechanism, the MCX connector provides quick and secure mating while maintaining consistent electrical performance. This part is commonly used in RF modules, antennas, and test equipment where space is limited and high-frequency performance is required.
The connector has a characteristic impedance of 50 Ohms.
The connector is rated for frequencies up to 6 GHz.
It uses a snap-on fastening mechanism.
The connector is designed for surface mount mounting.
Both the center contact and shield are terminated by soldering.
The center contact is made of phosphor bronze.
The housing is gold in color.
