| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

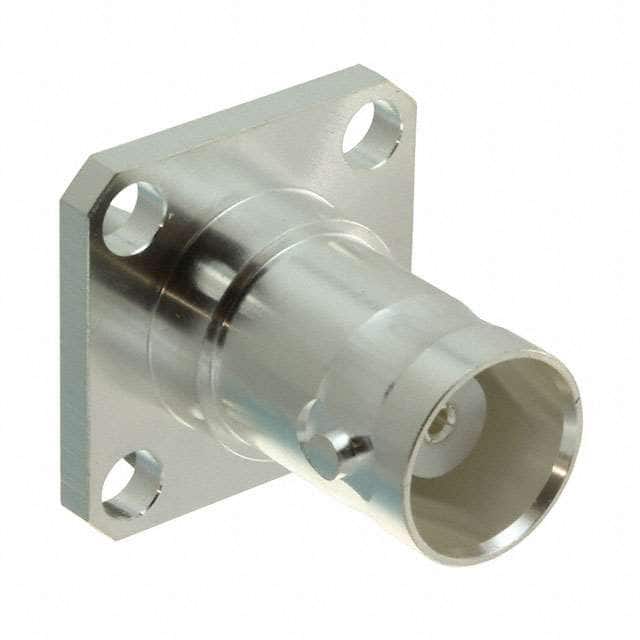

The 1-1337446-0 is a BNC coaxial connector assembly from TE Connectivity. It features a female socket (jack) contact with a 50 Ohm impedance rating, suitable for RF applications up to 2 GHz. The connector uses a bayonet lock fastening mechanism for secure mating and is designed for panel mounting with a flange. Termination is via solder cup for the center contact and solder for the shield, ensuring reliable electrical connections. The center contact is made of phosphor bronze, and the housing is silver in color. An extended insulation feature is included for enhanced electrical isolation.
50 Ohm.
2 GHz.
Panel mount with flange.
Solder cup for the center contact and solder for the shield.
Bayonet lock.
Phosphor bronze.
