| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

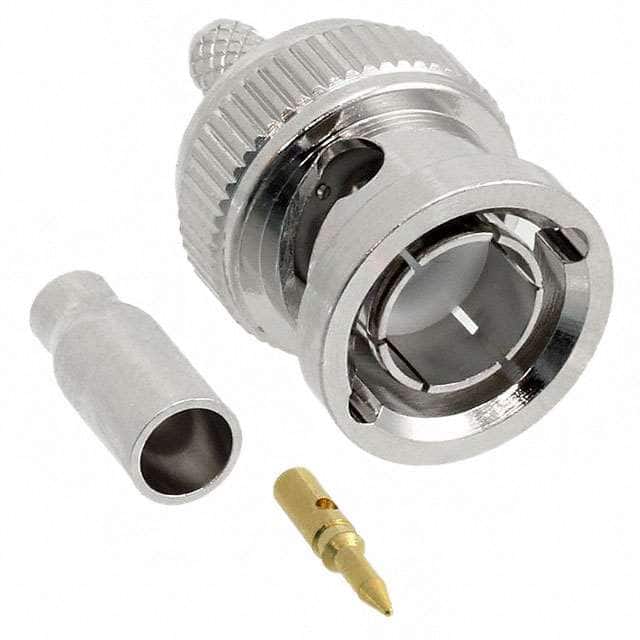

The TE Connectivity 1-1337431-0 is a BNC plug connector designed for coaxial cable applications requiring 75 Ohm impedance. It features a male pin center contact made of brass and supports a frequency range up to 2 GHz. The connector uses a bayonet lock fastening type for secure mating and is intended for free hanging (in-line) mounting.
Contact termination is achieved via soldering, while the shield is terminated using a crimp method. This connector is compatible with cable groups RG-179B and 187A. The housing is finished in silver. As a single-port device, it is suitable for RF signal connections in video, broadcast, and telecommunications equipment where 75 Ohm impedance is standard.
75 Ohm.
2 GHz.
BNC plug, male pin.
Solder.
Crimp.
RG-179B and 187A.
Free hanging (in-line).
