| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
644 pcs
|
644 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

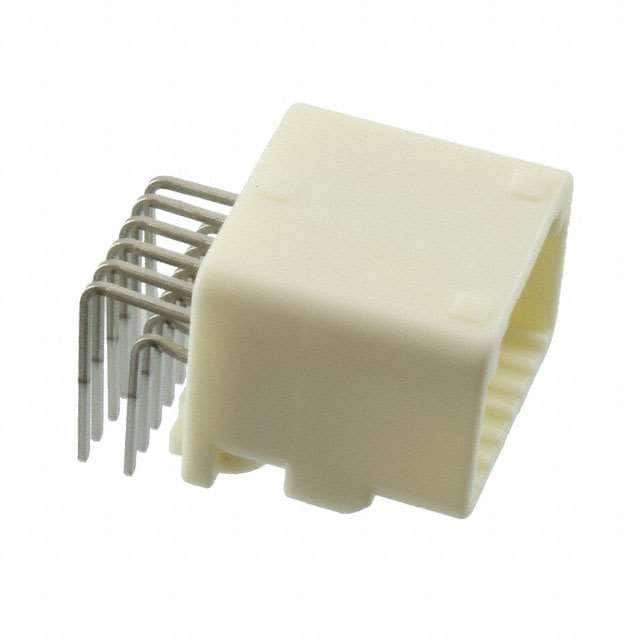

TE Connectivity 1-1318772-3 is a rectangular connector header, male pin, designed for board-to-cable/wire connections. It has 12 positions arranged in 2 rows with a 2.2mm pitch and 3.0mm row spacing. The connector is fully shrouded with 4 walls and includes a latch holder for secure mating.
Contacts are square brass with tin plating. The insulation is natural color syndiotactic polystyrene (SPS) glass filled. Operating temperature range is -30°C to 105°C, and voltage rating is 12VDC. Mounting is through hole, right angle, with solder termination. A mounting flange provides additional PCB stability.
This header is suitable for board-to-cable/wire interconnect applications in electronic devices requiring a compact, secure connector. The shrouded design protects pins and guides mating, while the latch holder ensures retention in vibration-prone environments.
12 positions in 2 rows.
2.2mm (0.087").
12VDC.
Through hole, right angle with solder termination.
-30°C to 105°C.
Contacts are brass with tin plating.
Yes, it has a shrouded 4-wall design with a latch holder.
