| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,686 pcs
|
1686 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

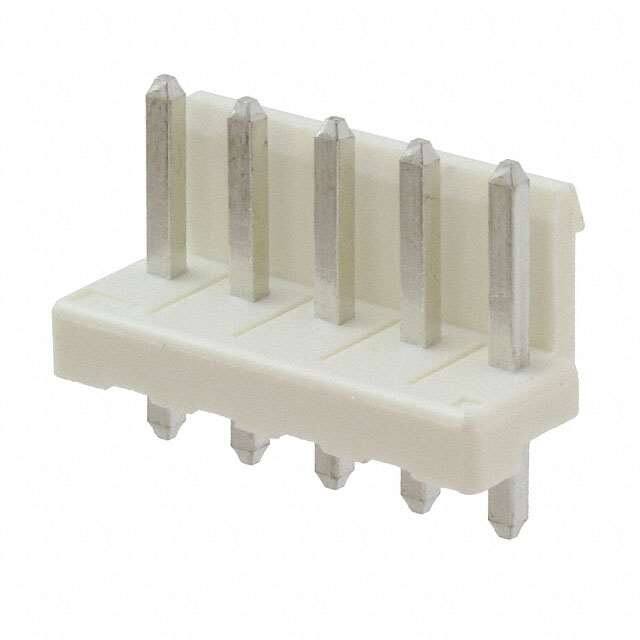

The TE Connectivity 1-1123723-5 is a 5-position, single-row, shrouded header designed for board-to-cable/wire applications. It features male square pins made of brass with a tin contact finish, housed in a natural polybutylene terephthalate (PBT) glass-filled insulator rated UL94 V-0.
This connector is rated for 7.5A current and 250VAC voltage, with an operating temperature range of -25°C to 105°C. The shrouded design with one wall and a friction lock fastening type provides secure mating and reliable connection in demanding environments.
The header is through-hole mounted with solder termination, making it suitable for automated assembly processes. The overall contact length is 14.40mm (0.567") with a contact length of 7.70mm (0.303").
It has 5 positions in a single row.
The pitch is 3.96mm.
The current rating is 7.5A.
The voltage rating is 250VAC.
It uses through-hole mounting with solder termination.
The operating temperature range is -25°C to 105°C.
The insulator is made of polybutylene terephthalate (PBT) glass-filled with a UL94 V-0 flammability rating.
