| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
310 pcs
|
310 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

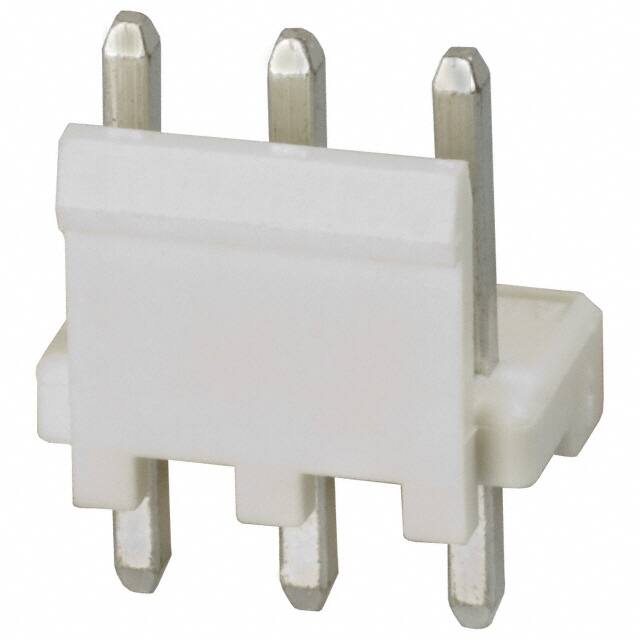

The TE Connectivity 1-1123723-3 is a rectangular connector header designed for board-to-cable/wire applications. This connector type features a single row of 3 male pin contacts with a 3.96mm (0.156 inch) pitch, providing a compact and reliable interconnection solution.
Key electrical specifications include a current rating of 7.5 Amps and a voltage rating of 250VAC. The operating temperature range spans from -25°C to 105°C, suitable for many industrial and consumer environments. The connector is mechanically secured using a friction lock, and the header design includes a single-wall shroud for added protection.
The contact pins are made of brass with a tin finish and a square shape. The contacts have a length of 7.70mm and an overall contact length of 14.40mm. The insulator housing is made of glass-filled PBT with a natural color and a UL94 V-0 flammability rating. This through-hole component is terminated by soldering onto a printed circuit board.
This header has 3 positions arranged in a single row.
The pitch is 3.96mm (0.156 inches).
The current rating is 7.5 Amps and the voltage rating is 250VAC.
This connector uses through-hole mounting with solder termination.
The operating temperature range is -25°C to 105°C.
