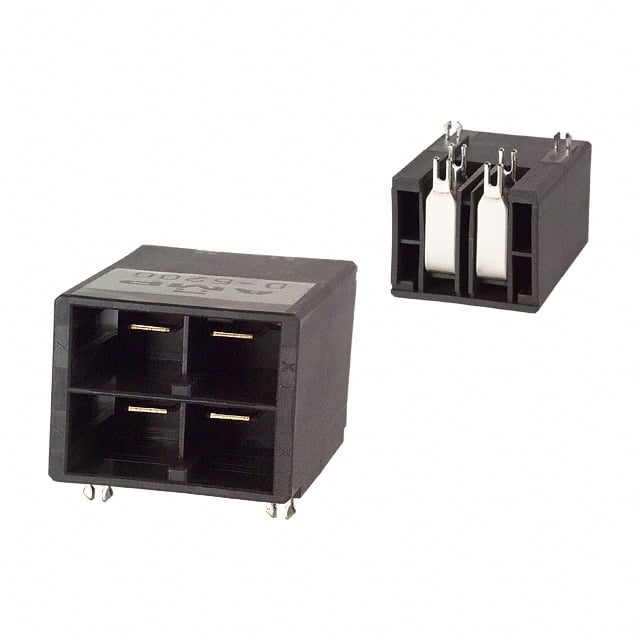

1-1123309-2 This is a 4-position, 2-row, 10.16mm pitch header connector from TE Connectivity. It features a right angle, through hole mounting with a shrouded design and detent lock.
Mfr Part #:

1-1123309-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a 4-position, 2-row, 10.16mm pitch header connector from TE Connectivity. It features a right angle, through hole mounting with a shrouded design and detent lock.
✓ Total Stock: 270 pcs

1-1123309-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
270 pcs
On Request
270 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1123309-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Ingress Protection
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-1123309-2 Description

Short technical summary and product information.

The TE Connectivity 1-1123309-2 is a 4-position, 2-row header connector with a 10.16mm pitch. It is designed for board-to-cable/wire applications and features a right angle through hole mounting style with solder termination. The connector has a shrouded 4-wall design with a detent lock fastening system for secure mating. Contacts are made of copper alloy with a tin finish of 15.0µin (0.38µm). The insulation is black thermoplastic, polyester, glass filled with a UL94 V-0 flammability rating.



Electrically, the connector is rated for 30A current and 630V voltage, with an operating temperature range of -55°C to 105°C. It has an IP20 ingress protection rating. The contact shape is rectangular with a contact length of 3.81mm. Row spacing is also 10.16mm. The connector includes a board lock feature for additional mechanical retention.



This header is suitable for power distribution and industrial applications requiring a reliable, high-current interconnection. The right angle orientation allows for low-profile connections on the PCB. All positions are loaded with tab contacts.

1-1123309-2 Quick Information

Product Type: Header Connector
Canonical Name: TE Connectivity 1-1123309-2 Header, 4 Position, 2 Row, 10.16mm Pitch, Right Angle, Through Hole
Subcategory: Right Angle Shrouded Header

1-1123309-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-1123309-2 Features

  • Header has 4 positions and 2 rows.
  • Pitch spacing is 10.16mm.
  • Mounting is right angle through hole.
  • Shrouded design with 4-wall protection.
  • Rated for 30A current and 630V voltage.

1-1123309-2 Applications

  • Board-to-wire power connections.
  • Industrial control systems.
  • Power supply units.
  • Automation equipment.
  • High-current distribution.

1-1123309-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions.

What is the pitch of this connector?

10.16mm.

What is the current rating of this header?

30A.

What is the voltage rating?

630V.

What is the mounting type?

Through Hole, Right Angle.

What is the operating temperature range?

-55°C to 105°C.

What fastening type does this connector use?

Detent Lock.
