| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

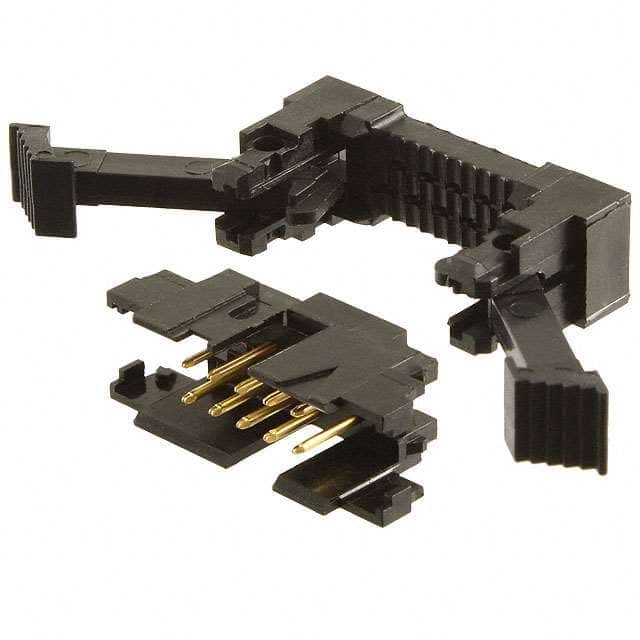

The TE Connectivity 1-111504-4 is a 10 position rectangular connector plug designed for insulation displacement termination (IDC) of 26-28 AWG ribbon cable. It features a 2.54mm (0.100") pitch and 2.54mm row spacing, with two rows of male pin contacts. The contacts are finished with 30.0µin (0.76µm) gold plating for reliable signal integrity.
This connector uses a free hanging (in-line) mounting style and is secured with latch lock/eject hooks for a robust connection. The feed through design allows daisy chaining of multiple connectors along a ribbon cable. The housing is black and the wire type is specifically ribbon cable.
Typical applications include internal wiring in electronic equipment where a compact, reliable, and mass-terminated connection is needed. The IDC termination method reduces assembly time and eliminates the need for individual wire stripping and crimping.
The 1-111504-4 has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") and the row spacing is also 2.54mm.
It uses IDC (Insulation Displacement Connection) termination for 26-28 AWG ribbon cable.
The mounting type is free hanging (in-line) with latch lock/eject hooks for fastening.
