| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,050 pcs
|
1050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,001 pcs
|
1001 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

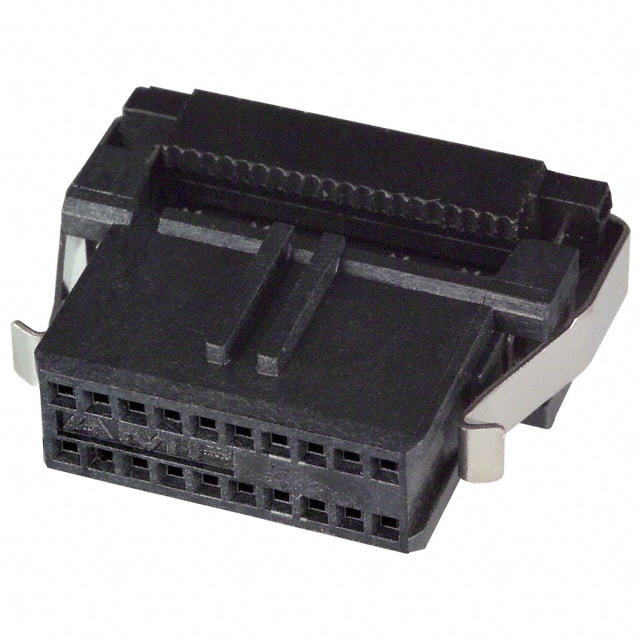

The TE Connectivity 1-111196-8 is a 20-position IDC receptacle connector designed for use with 30-32 AWG ribbon cable. It features female socket contacts with 30.0µin gold plating, ensuring reliable signal transmission and corrosion resistance. The connector has a 1.27mm pitch and 2.54mm row spacing, with 2 rows of contacts.
The connector uses IDC (Insulation Displacement Connection) termination for quick and reliable cable assembly without stripping. It is designed for free hanging (in-line) mounting and includes a latch lock fastening system for secure mating. The black housing is made for durability and includes a feed through feature.
This receptacle is suitable for internal wiring applications where compact, high-density connections are required. It is designed for ribbon cable interconnects in electronic assemblies.
It has 20 positions arranged in 2 rows.
The pitch is 1.27mm (0.050") with a row spacing of 2.54mm (0.100").
It is designed for free hanging (in-line) mounting.
It uses female socket contacts with 30.0µin gold plating.
It accepts 30-32 AWG ribbon cable.
It uses IDC (Insulation Displacement Connection) termination.
Yes, it features a latch lock fastening type.
