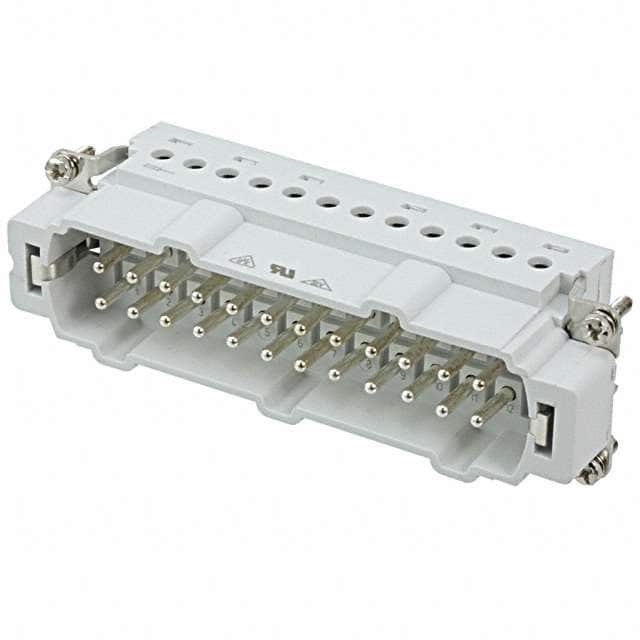

1-1103640-1 TE Connectivity heavy duty connector insert, male, 24+Ground positions, size 8, with screw termination. Rated 16A and 400V.
Mfr Part #:

1-1103640-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity heavy duty connector insert, male, 24+Ground positions, size 8, with screw termination. Rated 16A and 400V.
✓ Total Stock: 15 pcs
$ Price Range: $32.47 - $35.39

1-1103640-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1103640-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating (Amps)
Gender
Number of Positions
Operating Temperature
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

1-1103640-1 Description

Short technical summary and product information.

The TE Connectivity 1-1103640-1 is a heavy duty connector insert designed for industrial and commercial applications requiring reliable power and signal connections. This male insert features 24 signal positions plus a ground contact, arranged in a size 8 housing.



The insert uses screw termination for secure and durable wire connections. It is rated for 16A current and 400V voltage, making it suitable for moderate power distribution. The operating temperature range spans from -40°C to 125°C, allowing use in harsh environments.



This component is part of TE Connectivity's heavy duty connector system, designed for modular assembly and easy maintenance. The male insert mates with corresponding female inserts to form a complete connector pair.

1-1103640-1 Quick Information

Product Type: Heavy Duty Connector Insert
Series: HE.24
Canonical Name: Heavy Duty Connector Insert, Male, 24+Ground Positions, Size 8, Screw Termination
Subcategory: Insert

1-1103640-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-1103640-1 Estimated Pricing

Qty Low High
1+ $35.39 $35.39
10+ $34.90 $34.90
25+ $34.38 $34.38
50+ $33.47 $33.47
100+ $32.97 $32.97
250+ $32.47 $32.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-1103640-1 Features

  • Male insert with 24+Ground positions.
  • Screw termination for secure connections.
  • Rated 16A current and 400V voltage.
  • Operating temperature -40°C to 125°C.
  • Size 8 heavy duty connector housing.

1-1103640-1 Applications

  • Industrial control panel wiring.
  • Machine tool power distribution.
  • Factory automation equipment connections.
  • Heavy machinery electrical systems.

1-1103640-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the 1-1103640-1?

The current rating is 16A.

What is the voltage rating of this connector insert?

The voltage rating is 400V.

How many positions does the 1-1103640-1 have?

It has 24 signal positions plus a ground contact (24+Ground).

What termination style does this insert use?

It uses screw termination.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What size is this connector insert?

The insert is size 8.
