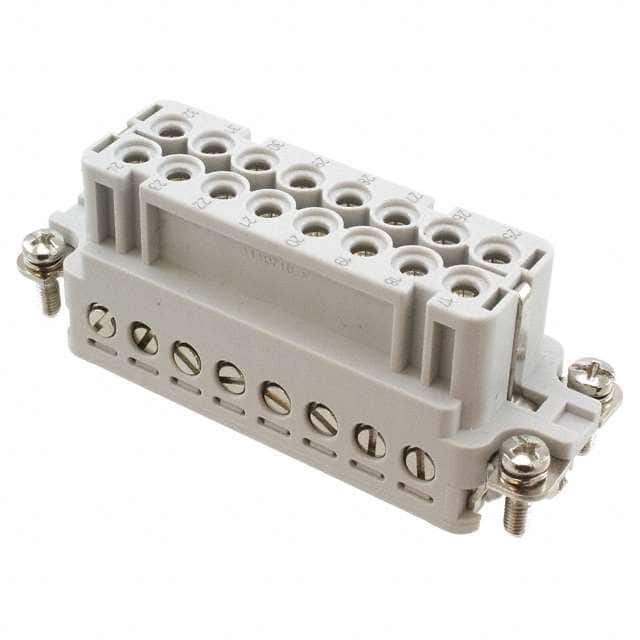

1-1103417-7 Heavy duty connector insert from TE Connectivity with 16+Ground female contacts and screw termination. Rated for 16A at 250V with operating temperature range -40°C to 125°C.
Mfr Part #:

1-1103417-7

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Heavy duty connector insert from TE Connectivity with 16+Ground female contacts and screw termination. Rated for 16A at 250V with operating temperature range -40°C to 125°C.
✓ Total Stock: 5 pcs
$ Price Range: $88.88 - $135.41

1-1103417-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1103417-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating (Amps)
Gender
Lead Style
Number of Positions
Operating Temperature
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

1-1103417-7 Description

Short technical summary and product information.

This is a heavy duty connector insert from TE Connectivity, part number 1-1103417-7. It is a female insert with 16 signal positions plus one ground contact, using screw termination. The insert is size 5.



Electrical ratings include 16A current and 250V voltage. Operating temperature range is -40°C to 125°C. The insert is designed for use in heavy duty connector housings.



The screw termination provides secure and reliable connections for industrial applications. The insert is RoHS3 compliant and REACH unaffected (unverified). It is suitable for use in harsh environments.

1-1103417-7 Quick Information

Product Type: Heavy Duty Connector Insert
Canonical Name: Heavy Duty Connector Insert, Female, 16+Ground Positions, Screw Termination, Size 5
Subcategory: Heavy Duty Connector Inserts

1-1103417-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: Non-Compliant

1-1103417-7 Estimated Pricing

Qty Low High
1+ $135.41 $135.41
3+ $132.89 $132.89
6+ $130.39 $130.39
11+ $127.88 $127.88
80+ $125.38 $125.38
100+ $104.75 $104.75
250+ $88.88 $88.88

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-1103417-7 Features

  • 16+Ground female contacts for signal and ground.
  • Screw termination for secure wire connections.
  • Rated for 16A current and 250V voltage.
  • Operating temperature range -40°C to 125°C.
  • Size 5 insert for heavy duty connectors.

1-1103417-7 Applications

  • Used in industrial control cabinets and panels.
  • Suitable for power distribution in machinery.
  • Ideal for automation and process control systems.
  • Applied in heavy duty connector housings.

1-1103417-7 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this insert have?

16 signal positions plus one ground contact (16+Ground).

What is the current rating?

16 A.

What is the voltage rating?

250 V.

What is the termination style?

Screw termination.

What is the operating temperature range?

-40°C to 125°C.

Is this insert RoHS compliant?

RoHS3 Compliant (unverified).

What is the gender of this insert?

Female.
