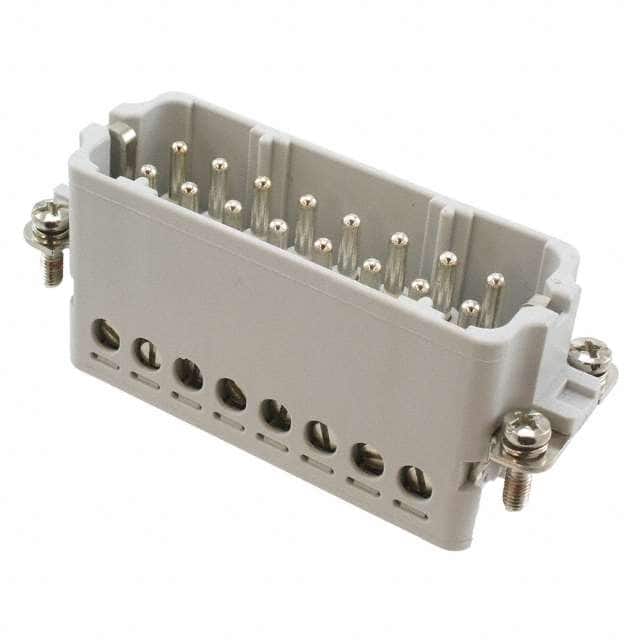

1-1103416-1 Male insert for heavy duty connectors with 16+ground positions, rated 16A and 250V, screw termination.
Mfr Part #:

1-1103416-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Male insert for heavy duty connectors with 16+ground positions, rated 16A and 250V, screw termination.
✓ Total Stock: 2 pcs
$ Price Range: $29.09

1-1103416-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1103416-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating (Amps)
Gender
Lead Style
Number of Positions
Operating Temperature
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

1-1103416-1 Description

Short technical summary and product information.

The TE Connectivity 1-1103416-1 is a male insert designed for heavy duty connector systems. It features 16 signal positions plus one ground contact, with a current rating of 16 A and voltage rating of 250 V. The insert uses screw termination for secure and reliable wiring connections.



This insert is rated for an operating temperature range of -40°C to 125°C, making it suitable for demanding industrial environments. It is part of the size 5 family of heavy duty connector inserts, commonly used in power distribution and control applications.



As an insert only, it requires a compatible housing for full connector assembly. The screw termination allows for easy field installation and maintenance. Compliance with RoHS, REACH, and MSL level 1 is claimed but unverified.

1-1103416-1 Quick Information

Product Type: Heavy Duty Connector Insert
Series: HA.16
Canonical Name: INSERT MALE 16POS+1GND SCREW
Subcategory: Heavy Duty Connector Insert

1-1103416-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

1-1103416-1 Estimated Pricing

Qty Low High
160+ $29.09 $29.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-1103416-1 Features

  • Male insert with 16+ground positions.
  • Rated for 16A and 250V.
  • Screw termination for reliable connections.
  • Operating temperature range -40°C to 125°C.
  • Size 5 heavy duty connector insert.

1-1103416-1 Applications

  • Used in industrial machinery power distribution.
  • Suitable for heavy duty connector systems.
  • Ideal for factory automation equipment.
  • Applied in control cabinet wiring.

1-1103416-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this insert have?

16+ground (16 signal positions plus 1 ground).

What is the current rating?

16 A.

What is the voltage rating?

250 V.

What is the operating temperature range?

-40°C to 125°C.

What termination style does it use?

Screw termination.

What is the connector type?

Insert.

What is the gender?

Male.
