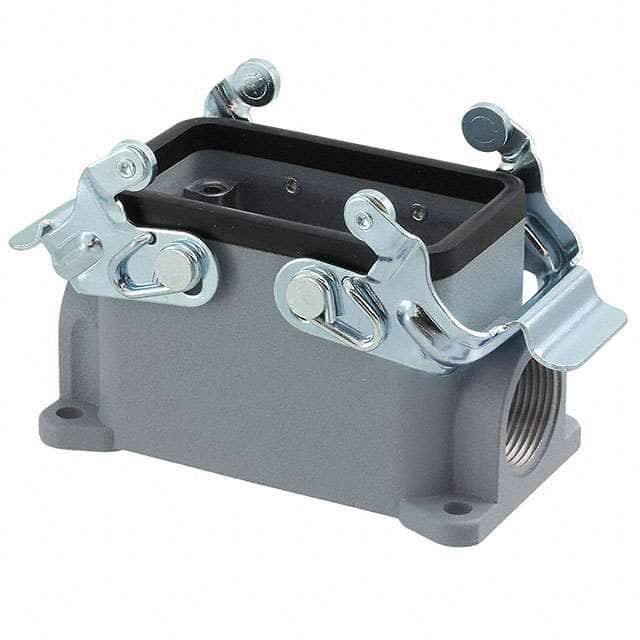

1-1102274-1 Heavy duty connector base with side entry, PG16 thread, and IP65 protection. Die-cast aluminum alloy housing with locking clips.
Mfr Part #:

1-1102274-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Heavy duty connector base with side entry, PG16 thread, and IP65 protection. Die-cast aluminum alloy housing with locking clips.
✓ Total Stock: 5 pcs
$ Price Range: $27.43 - $28.47

1-1102274-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-1102274-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Style
Tape & Reel
Thread Size
Width
View Similar Products (0)

1-1102274-1 Description

Short technical summary and product information.

The TE Connectivity 1-1102274-1 is a heavy duty connector base designed for box mounting applications. It features a side entry style for flexible cable routing and a PG16 thread size for standard conduit connections. The housing is constructed from die-cast aluminum alloy with an aluminum oxide finish, providing a durable gray exterior. Ingress protection is rated IP65, ensuring dust tight and water resistant performance in harsh industrial environments. The base includes two locking clips on the bottom for secure mating with compatible hoods. Dimensions are 94.00mm in length, 52.00mm in width, and 53.50mm in height.

1-1102274-1 Quick Information

Product Type: Heavy Duty Connector Base
Series: HB.10
Canonical Name: TE Connectivity Heavy Duty Connector Base, Side Entry, PG16, Aluminum Alloy, IP65
Subcategory: Bases

1-1102274-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-1102274-1 Estimated Pricing

Qty Low High
3+ $28.47 $28.47
15+ $27.95 $27.95
27+ $27.43 $27.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-1102274-1 Features

  • Side entry design for flexible cable routing.
  • PG16 thread size for standard conduit fitting.
  • IP65 dust tight and water resistant protection.
  • Die-cast aluminum alloy housing for durability.
  • Locking clips on base bottom for secure connection.

1-1102274-1 Applications

  • Industrial machinery and control panels.
  • Robotic and automation equipment connections.
  • Harsh environment electrical enclosures.
  • Heavy equipment wiring systems.

1-1102274-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What type of connector is the 1-1102274-1?

It is a base - box mount connector.

What is the style of this connector base?

Side entry.

What thread size does this base have?

PG16.

What is the locking mechanism?

Two locking clips on the base bottom.

What is the housing material?

Die-cast aluminum alloy.

What is the ingress protection rating?

IP65 - dust tight and water resistant.

What are the dimensions of this base?

94.00mm length, 52.00mm width, 53.50mm height.
