| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,410 pcs
|
4410 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

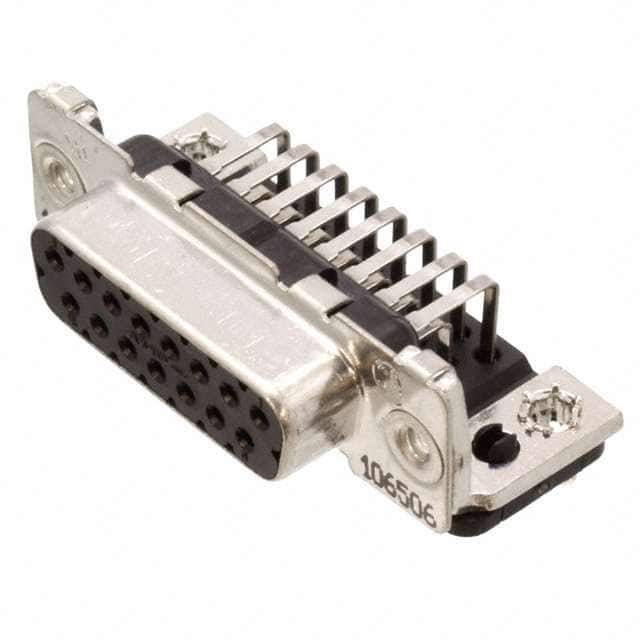

The TE Connectivity 1-106506-2 is a D-Sub receptacle connector designed for reliable signal interconnections. It features 15 positions arranged in 2 rows, with female socket contacts that are gold plated to 30.0µin (0.76µm) for enhanced conductivity and corrosion resistance.
This connector uses solder termination and supports panel mount with through-hole, right-angle mounting. The shell is made of steel with a tin-plated finish, and the flange feature uses housing/shell (4-40) threads. The backset spacing is 0.406" (10.30mm).
The insulator material has a UL94 V-0 flammability rating, and the connector includes a board lock feature for secure attachment to the PCB. It is rated for 6A current per contact.
The connector has 15 positions arranged in 2 rows.
The current rating is 6A per contact.
It supports panel mount with through-hole, right-angle mounting.
The contacts have a gold finish with a thickness of 30.0µin (0.76µm).
The material flammability rating is UL94 V-0.
