1-104656-0 by TE Connectivity AMP Connectors

1-104656-0 by TE Connectivity AMP Connectors

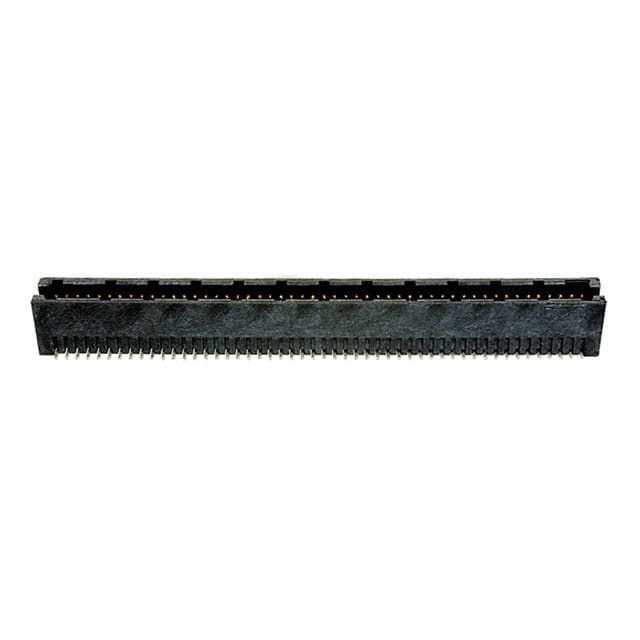

CONN HEADER SMD 100POS 1.27MM

DistiPart #
Manufacturer Name TE Connectivity AMP Connectors
Manufacturer Part #

1-104656-0

Manufacturer Standard Lead Time 12 Weeks
EDA/CAD Models
Are you a distributor of this part? Register now to receive RFQ from buyers.
Download Datasheet
Other Documents
Estimated Stock: 263 *Can dispatch immediately
Estimated Price $9.81883
Estimated Lead time 12 Weeks
Minimum Order Quantity: 648

Specifications of 1-104656-0

Product Attribute
Attribute Value
Select Attribute
Category
Headers, Male Pins
Manufacturer
TE Connectivity AMP Connectors
Connector Type
Header
Contact Finish Thickness
30.0碌in (0.76碌m)
Contact Finish
Tin-Lead
Contact Length
0.120" (3.05mm)
Contact Material
Phosphor Bronze
Contact Shape
Circular
Contact Type
Male Pin
Fastening Type
Push-Pull
Features
Board Lock
Insulation Color
Black
Insulation Height
0.298" (7.57mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Material Flammability Rating
UL94 V-0
Mounting Type
Surface Mount
Number of Positions
100
Number of Positions Loaded
All
Number of Rows
2
Pitch
0.050" (1.27mm)
Shrouding
Shrouded - 4 Wall
Style
Board to Board
Termination
Solder
Current Rating (Amps)
0.5A per Contact
Operating Temperature
-65掳C ~ 105掳C
Row Spacing
0.050" (1.27mm)
View All Features
DistyParts - Get Multiple quotes in one request

Product Compliance of 1-104656-0

Attributes Description
CNHTS 98765434567
USHTS 45678987654
TARIC 67898765567
ECCN 3A991

Documents of 1-104656-0

Datasheet
  Datasheet

Environmental & Export Classifications of 1-104656-0

Attributes Description
RoHS Status RoHS3 Compliant
Moisture Sensitivity Level (MSL) 1 Unlimited
REACH Status REACH Unaffected
ECCN 3A991
HTSUS 9876.21.0030

Additional Resources of 1-104656-0

Attributes Description
Other Names RMCF 1/16S 0 R RMCF0402ZT0R00-ND RMCF1/16S0RTR-ND RMCF1/16S0RCT RMCF0402ZT0R00CT RMCF1/16S0RDKR-ND RMCF1/16S0RDKR
Standard Package 10,000
