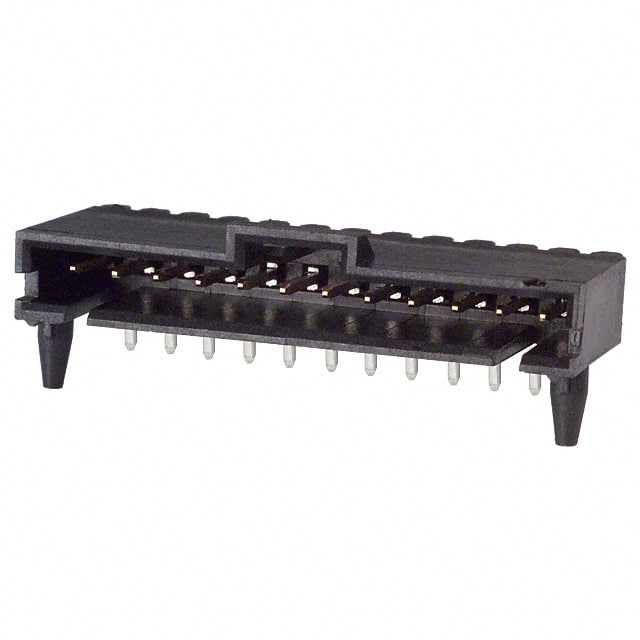

1-104361-1 This is a 12-position, single-row, right-angle shrouded header with 2.54mm pitch, designed for board-to-board or cable applications. It features a latch holder fastening, board lock, and keying slot.
Mfr Part #:

1-104361-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a 12-position, single-row, right-angle shrouded header with 2.54mm pitch, designed for board-to-board or cable applications. It features a latch holder fastening, board lock, and keying slot.
✓ Total Stock: 50 pcs

1-104361-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-104361-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

1-104361-1 Description

Short technical summary and product information.

The TE Connectivity 1-104361-1 is a 12-position, single-row, right-angle shrouded header with a 2.54mm pitch. It features male pin contacts made of brass with a square shape and a tin-lead finish (15.0µin thickness). The header is designed for through-hole, right-angle mounting with solder termination. The insulation is black thermoplastic with a height of 5.08mm and a UL94 V-0 flammability rating. It includes a latch holder for secure fastening, a board lock, and a keying slot for alignment. The operating temperature range is -65°C to 105°C, and the current rating is 3A. This connector is suitable for board-to-board or cable applications. The part is cross-referenced as Digi-Key A28684-ND.

1-104361-1 Quick Information

Product Type: Header, Male Pins
Canonical Name: Header, Male Pins, 12 Position, 2.54mm Pitch, Through Hole, Right Angle, Shrouded
Subcategory: Headers, Male Pins

1-104361-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-104361-1 Features

  • 12-position single-row right-angle header.
  • 2.54mm pitch for compact designs.
  • Rated for 3A continuous current.
  • Shrouded 4-wall design with latch holder.
  • UL94 V-0 thermoplastic insulation.

1-104361-1 Applications

  • Ideal for board-to-board connections.
  • Suitable for cable-to-board applications.
  • Used in industrial control systems.
  • Common in consumer electronics.
  • Applicable in automotive modules.

1-104361-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

12 positions.

What is the pitch?

2.54mm (0.100").

What is the current rating?

3A.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.

What is the contact finish?

Tin-Lead with 15.0µin (0.38µm) thickness.

What is the insulation material and flammability rating?

Thermoplastic, UL94 V-0.
