| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

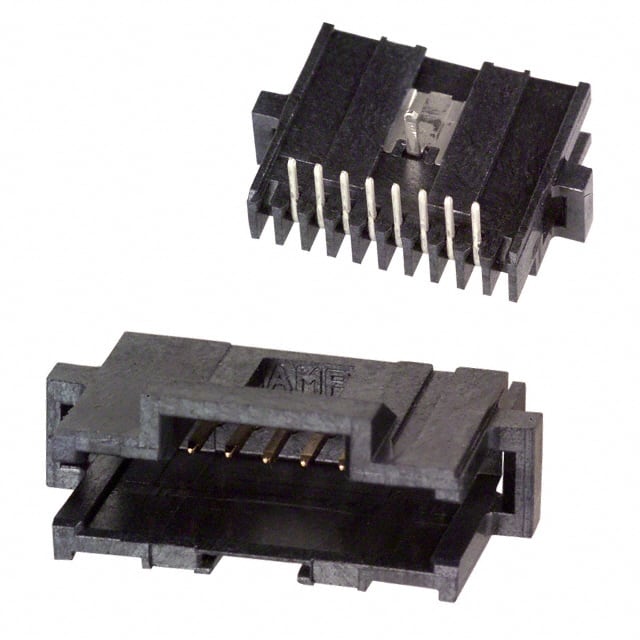

The TE Connectivity 1-104074-0 is a rectangular connector header designed for board-to-board or cable applications. It features 8 male pin contacts arranged in a single row with a pitch of 1.27mm (0.050 inches). The connector is shrouded with a 2-wall design and includes a latch holder for secure fastening.
This header utilizes a through hole, right angle mounting style with solder termination. The contacts are made of copper alloy with a tin-lead finish plated to 30.0 microinches (0.76 micrometers). The insulation is black thermoplastic with a UL94 V-0 flammability rating, and the housing height is 4.83mm (0.190 inches). The contact length is 3.18mm (0.125 inches).
Additional features include a board guide for alignment. The operating temperature range is -65°C to 105°C, and the voltage rating is 30VAC. This component is suitable for use in applications requiring a compact, reliable interconnect solution.
The pitch is 1.27mm (0.050 inches).
The voltage rating is 30VAC.
The mounting type is through hole, right angle.
