| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

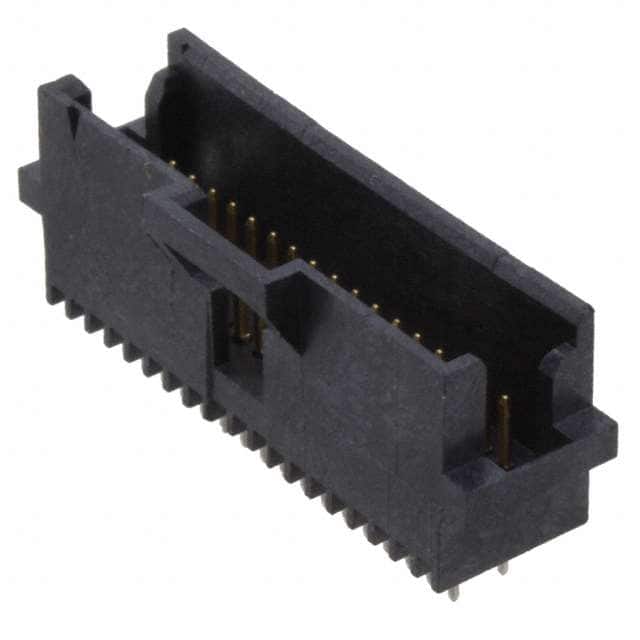

The TE Connectivity 1-104068-3 is a 34-position, 2-row shrouded header connector designed for board-to-board or cable applications. It features male pin contacts with a circular contact shape, made from copper alloy with a tin-lead contact finish of 30.0µin (0.76µm). The connector has a pitch of 1.27mm (0.050") and a row spacing of 2.54mm (0.100"). It is mounted via through hole solder termination. The header is shrouded with a 2-wall design and includes a latch holder fastening type for secure mating. The insulation is made of black thermoplastic with a flammability rating of UL94 V-0 and an insulation height of 9.91mm (0.390"). The operating temperature range is -65°C to 105°C, and the voltage rating is 30VAC. All 34 positions are loaded.
It has 34 positions arranged in 2 rows, all loaded.
The pitch is 1.27mm (0.050") with a row spacing of 2.54mm (0.100").
The voltage rating is 30VAC.
Through hole with solder termination.
-65°C to 105°C.
Tin-lead with a thickness of 30.0µin (0.76µm).
Yes, it features a latch holder fastening type.
