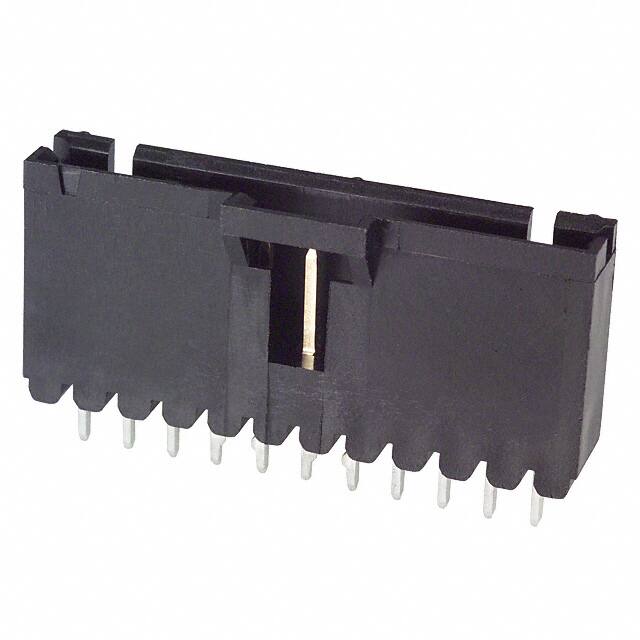

1-103670-0 TE Connectivity 1-103670-0 is a 11 position single row male pin header with 2.54mm pitch, through hole mounting, and shrouded design.
Mfr Part #:

1-103670-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-103670-0 is a 11 position single row male pin header with 2.54mm pitch, through hole mounting, and shrouded design.
✓ Total Stock: 12 pcs

1-103670-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
NTD Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 11 On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-103670-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-103670-0 Description

Short technical summary and product information.

This TE Connectivity 1-103670-0 is a 11-position, single row, male pin header. It features a shrouded 4-wall design with latch holder fastening, ensuring secure mating. The header is through hole mounted with both press-fit and solder termination options. Contact material is brass with tin-lead plating (15µin thickness). The square contact pins have a length of 5.84mm. Insulation material is black thermoplastic with UL94 V-0 flammability rating. Electrical ratings: 3A current and 267V voltage. Operating temperature range from -65°C to 105°C. The connector style is board-to-board or cable, making it suitable for various interconnection applications. It includes a keying slot feature for polarization.

1-103670-0 Quick Information

Product Type: Header, Male Pins
Series: MTE
Canonical Name: TE Connectivity 1-103670-0 11 Position Single Row Header, Shrouded, Through Hole, 2.54mm Pitch
Subcategory: Shrouded Header

1-103670-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-103670-0 Features

  • 11 position single row header with 2.54mm pitch.
  • Shrouded 4-wall design with latch holder fastening.
  • Rated for 3A current and 267V voltage.
  • Through hole mounting with press-fit or solder termination.
  • Operating temperature range -65°C to 105°C.

1-103670-0 Applications

  • Used for board-to-board or cable interconnections.
  • Suitable for wire-to-board applications in industrial equipment.
  • Ideal for applications requiring secure mating with latch holder.

1-103670-0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

11 positions.

What is the pitch?

2.54mm (0.100").

What is the current rating?

3A per contact.

What is the voltage rating?

267V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-65°C to 105°C.

What is the contact finish?

Tin-lead plating, 15.0µin (0.38µm) thickness.
