| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

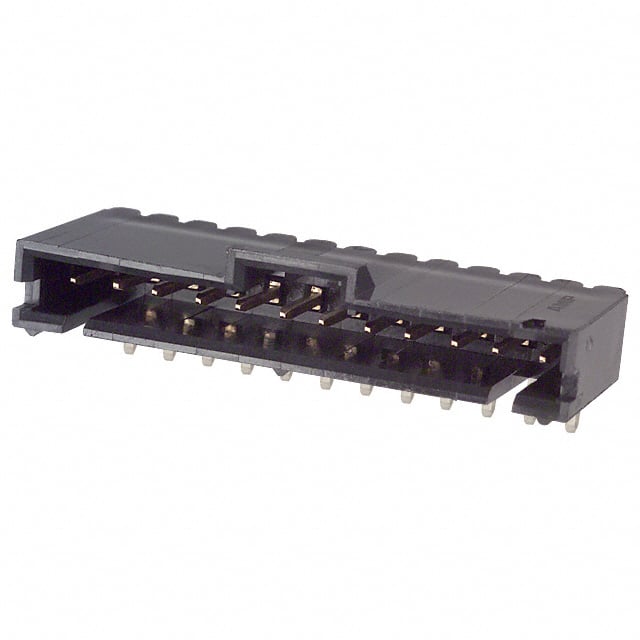

The TE Connectivity 1-103635-1 is a 12 position single row shrouded header with male pin contacts. It features a 2.54mm (0.100") pitch and a 4-wall shrouded design with latch holder fastening for secure mating. The header is configured for right angle through hole solder termination, making it suitable for board-to-board or cable connections.
Electrical rating is 3A per contact. The contacts are made of brass with a tin-lead finish (15.0µin) and have a square shape. The insulator is black thermoplastic rated UL94 V-0 for flammability. Operating temperature range is -65°C to 105°C. A keying slot feature aids in proper alignment during assembly.
It has 12 positions in a single row.
The pitch is 2.54mm (0.100").
The current rating is 3A per contact.
It uses through hole, right angle mounting with solder termination.
Yes, it has a shrouded 4-wall design with a latch holder fastening type.
