| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

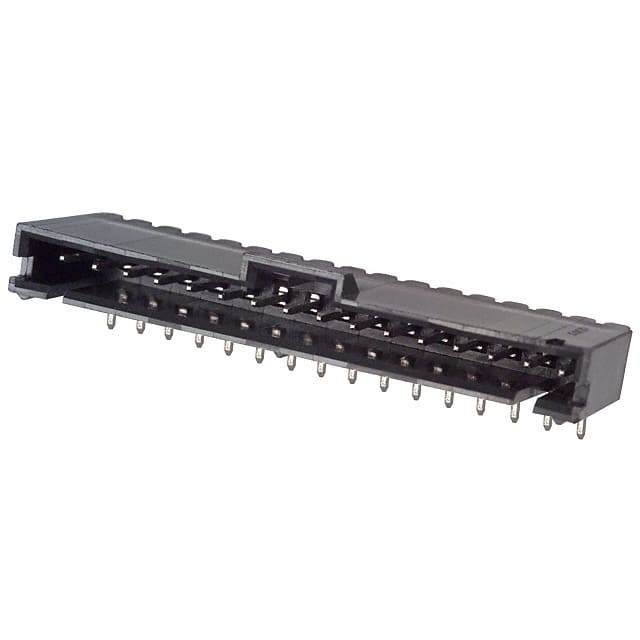

The TE Connectivity 1-103634-5 is a 16-position, single row header connector designed for board-to-board or cable applications. It features a 2.54mm pitch and a right angle through hole mounting style with solder termination.
Key specifications include brass contacts with a tin-lead finish (100µin), a current rating of 3A, and an operating temperature range of -65°C to 105°C. The connector is shrouded with a 4-wall design and includes a latch holder for secure mating, as well as a keying slot for polarization.
The insulation is made of black thermoplastic with a UL94 V-0 flammability rating, ensuring robust mechanical and thermal performance. This header is suitable for various industrial, telecommunications, and consumer electronics applications requiring reliable interconnections.
16 positions in a single row.
2.54mm (0.100 inches).
3 Amperes.
Through hole, right angle.
Tin-Lead plating, 100µin thickness.
-65°C to 105°C.
Yes, it has a shrouded 4-wall design with a latch holder for secure mating.
