| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
937 pcs
|
937 pcs | On Request | 1 | On Request | On Request | 1523 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Row Spacing between Rows | |
| Shrouding | |
| Style | |
| Termination |

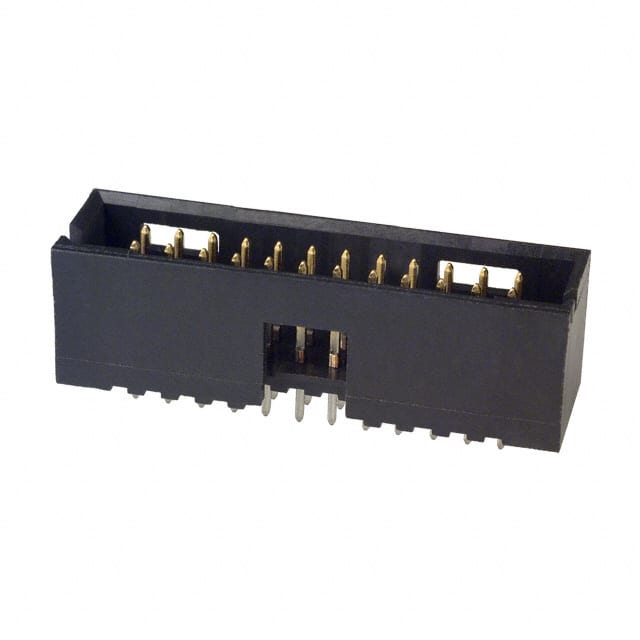

The TE Connectivity 1-102619-0 is a 24-position, 2-row shrouded header with male pins. It features a 2.54mm (0.100") pitch and is designed for through hole mounting. The connector has a square pin contact shape with phosphor bronze contact material and a tin-lead contact finish.
The housing is made of black thermoplastic with a UL94 V-0 flammability rating. It includes a detent lock fastening mechanism and is fully shrouded with 4 walls. The insulation height is 11.18mm (0.440") and the overall contact length is 0.533" (13.55mm). The mating contact length is 3.18mm (0.125").
This header is rated for 3A current and operates over a temperature range of -65°C to 105°C. It is suitable for board-to-board or cable connections. The row spacing is 2.54mm (0.100").
24 positions.
2.54mm (0.100").
3A.
Through hole.
Detent lock.
-65°C to 105°C.
Black.
