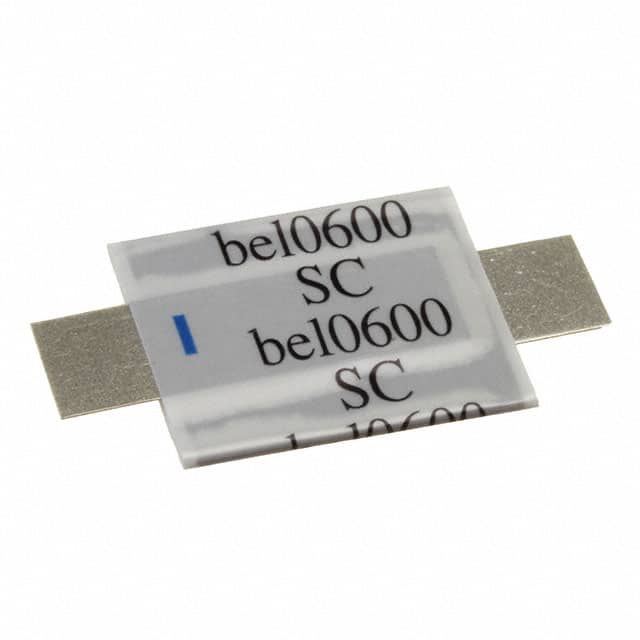

0ZSC0600FF1E Bel Fuse 0ZSC0600FF1E is a polymeric PTC resettable fuse with 6A hold current, 20V max voltage, and 5s trip time. It comes in a strap package with axial leads.
Mfr Part #:

0ZSC0600FF1E

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
Bel Fuse 0ZSC0600FF1E is a polymeric PTC resettable fuse with 6A hold current, 20V max voltage, and 5s trip time. It comes in a strap package with axial leads.
✓ Total Stock: 299 pcs

0ZSC0600FF1E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
299 pcs
On Request
299 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0ZSC0600FF1E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Lead Style
Length
Mounting Type
Operating Temperature
Package / Case
Resistance
Tape & Reel
Thickness
Thickness (Max)
Time to Trip
Type
Voltage
Width
View Similar Products (0)

0ZSC0600FF1E Description

Short technical summary and product information.

The Bel Fuse 0ZSC0600FF1E is a polymeric PTC resettable fuse from the 0ZSC series, designed for overcurrent protection in battery-powered applications. It features a hold current of 6A at 23°C and a trip current of 11.7A, with a maximum trip time of 5 seconds at 5 times the hold current. The device can withstand a maximum fault current of 100A at 20V DC.



This PTC fuse offers low resistance, with initial resistance ranging from 7 mΩ to 14 mΩ, and a post-trip resistance of 19 mΩ. Typical power dissipation in the tripped state is 2.8W. It is housed in a strap package with axial leads, measuring 25.00mm in length, 14.20mm in width, and 1.00mm in thickness.



The 0ZSC0600FF1E is RoHS3 compliant, lead-free, and halogen-free. It is suitable for use in rechargeable battery packs and lithium cell protection circuits. The operating temperature range is -40°C to 85°C.

0ZSC0600FF1E Quick Information

Product Type: PTC Resettable Fuse
Series: 0ZSC
Canonical Name: Bel Fuse 0ZSC0600FF1E Polymeric PTC Resettable Fuse, 6A Hold, 20V, Strap Package
Subcategory: Axial Lead Battery Strap PTC

0ZSC0600FF1E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

0ZSC0600FF1E Features

  • Polymeric PTC resettable overcurrent protection.
  • 6A hold current at 23°C ambient.
  • 20V DC maximum voltage rating.
  • Low initial resistance of 7 mΩ.
  • Strap package with axial leads.

0ZSC0600FF1E Applications

  • Rechargeable battery pack protection.
  • Lithium cell and battery pack circuits.
  • Overcurrent limiting in portable electronics.
  • Low-resistance power path protection.

0ZSC0600FF1E FAQs

6 frequently asked questions generated from this part’s specifications.
What is the hold current of the 0ZSC0600FF1E?

The hold current is 6.0 A at 23°C in still air.

What is the maximum voltage rating?

The maximum voltage is 20 V DC.

What is the trip time?

The maximum time to trip is 5 seconds at 5 times the hold current.

What package type is the 0ZSC0600FF1E?

It comes in a Strap package with axial leads.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Is the 0ZSC0600FF1E RoHS compliant?

Yes, it is RoHS3 compliant per the datasheet.
