| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Agency Approvals | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Height | |
| Hold Current | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Max Current | |
| Max Interrupt Voltage | |
| Minimum Resistance (RMIN) | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Ratings | |
| Resistance | |
| Resistance - Post Trip (R1max) | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Time to Trip | |
| Trip Current | |
| Type | |
| Typical Power Dissipation | |
| Voltage | |
| Voltage - Max | |
| Width |

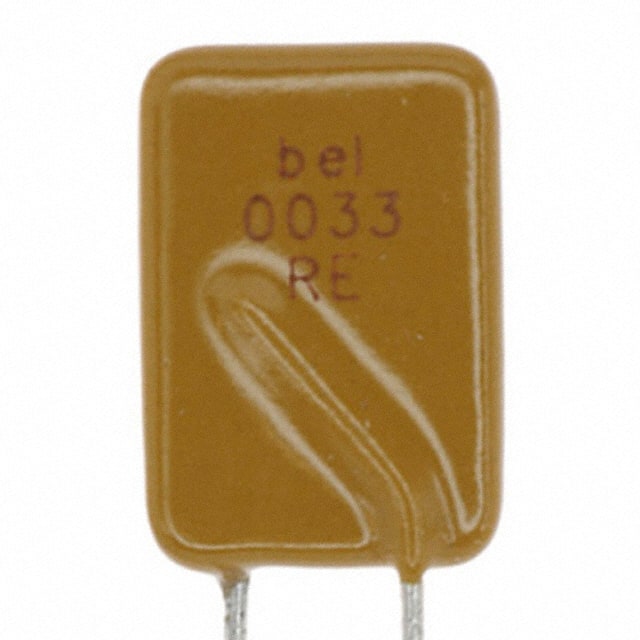

The 0ZRE0033FF1A is a polymeric PTC resettable fuse from Bel Fuse's 0ZRE series. It provides overcurrent protection with a hold current of 0.33 A and a trip current of 0.74 A at 23°C. The device is rated for a maximum voltage of 240V AC/DC and can interrupt up to 265V. The typical power dissipation is 1.7 W, and the time to trip at 0.74 A is 21 seconds.
Electrical characteristics include a minimum resistance of 0.83 Ω and a post-trip maximum resistance of 2.6 Ω. The device operates over a temperature range of -40°C to 85°C. It is housed in a radial, disc through-hole package with lead spacing of 5.10 mm, and dimensions of 11.40 mm x 3.80 mm x 16.50 mm.
The 0ZRE0033FF1A is RoHS compliant, lead-free, and halogen-free. It holds agency approvals from TUV and UL, and is AEC-Q compliant for automotive applications. This fuse is suitable for use in power supplies, motor controls, and industrial equipment where reliable resettable overcurrent protection is required.
0.33 A hold current.
240V max, with 265V max interrupt voltage.
6.0 A.
21 seconds typical.
Radial, Disc through-hole with 5.1mm lead spacing.
Minimum resistance 0.83Ω, post-trip maximum 2.6Ω.
-40°C to 85°C.
