0ZRB0400FF1A Bel Fuse 0ZRB0400FF1A is a polymeric PTC resettable fuse with 4A hold current, 30V max voltage, and 40A max fault current in a radial leaded package.
Mfr Part #:

0ZRB0400FF1A

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
Bel Fuse 0ZRB0400FF1A is a polymeric PTC resettable fuse with 4A hold current, 30V max voltage, and 40A max fault current in a radial leaded package.
✓ Total Stock: 15,000 pcs

0ZRB0400FF1A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0ZRB0400FF1A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Height
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Package / Case
Ratings
Resistance
Tape & Reel
Time to Trip
Type
Voltage
Width
View Similar Products (0)

0ZRB0400FF1A Description

Short technical summary and product information.

The Bel Fuse 0ZRB0400FF1A is a polymeric positive temperature coefficient (PTC) resettable fuse from the 0ZRB series. It is designed for overcurrent protection in circuits up to 30V DC. The device has a hold current of 4A and a trip current of 8.0A, with a maximum fault current rating of 40A. Typical power dissipation is 2.5W. The initial resistance is 10 mΩ, and the post-trip resistance is 50 mΩ. The time to trip at 20A is 12.7 seconds.

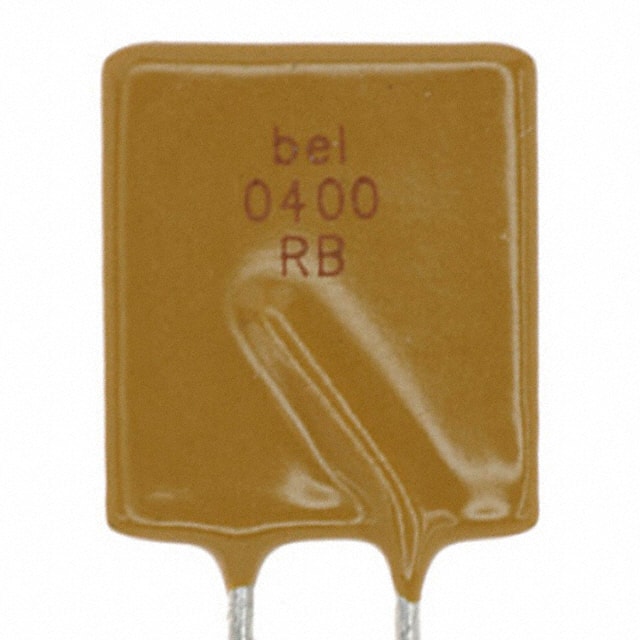

The fuse is housed in a radial leaded disc package with a lead spacing of 5.10 mm. It is rated for operating temperatures from -40°C to 85°C. The component is RoHS3 compliant, lead-free, and halogen-free. It holds agency approvals from TUV and UL, and is AEC-Q200 qualified for automotive applications.

0ZRB0400FF1A Quick Information

Product Type: PTC Resettable Fuse
Series: 0ZRB
Canonical Name: Bel Fuse 0ZRB0400FF1A PTC Resettable Fuse
Subcategory: Radial Leaded PTC

0ZRB0400FF1A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

0ZRB0400FF1A Features

  • 4A hold current with 8.0A trip current.
  • 30V DC maximum voltage rating.
  • 40A maximum fault current capability.
  • AEC-Q200 qualified for automotive use.
  • RoHS3 compliant and halogen free.

0ZRB0400FF1A Applications

  • Overcurrent protection in automotive electronics.
  • Protection for power supplies and battery circuits.
  • Used in industrial control and automation systems.
  • Suitable for consumer electronics and IoT devices.

0ZRB0400FF1A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the hold current of the 0ZRB0400FF1A?

The hold current is 4 A at 23°C in still air.

What is the maximum voltage rating?

The maximum voltage is 30 V DC.

What is the trip current?

The trip current is 8.0 A.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Is the 0ZRB0400FF1A RoHS compliant?

Yes, it is RoHS3 compliant and lead-free.

What package type does this fuse use?

It uses a radial leaded disc package with 5.10 mm lead spacing.

What is the maximum fault current?

The maximum fault current (Imax) is 40 A.
