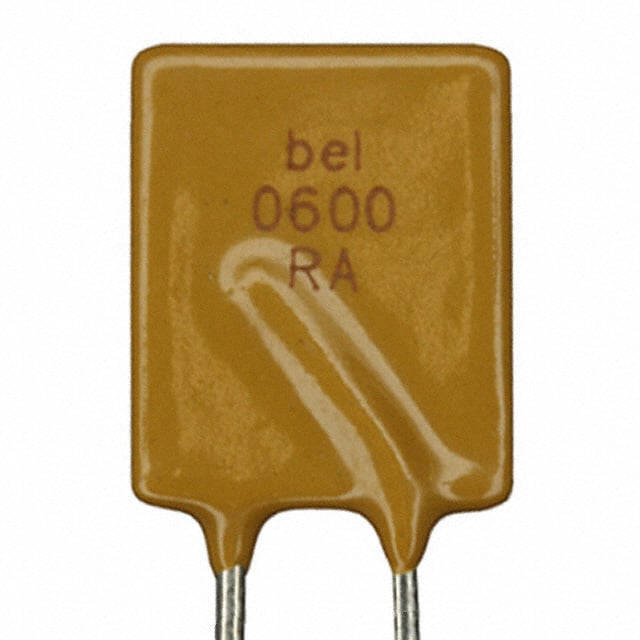

0ZRA0600FF1E PTC resettable fuse with 6A hold current, 16V maximum voltage, and 100A fault current capability in a radial disc package.
Mfr Part #:

0ZRA0600FF1E

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
PTC resettable fuse with 6A hold current, 16V maximum voltage, and 100A fault current capability in a radial disc package.
✓ Total Stock: 374 pcs

0ZRA0600FF1E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
374 pcs
On Request
374 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0ZRA0600FF1E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Height
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Package / Case
Ratings
Resistance
SVHC Present
Tape & Reel
Termination Style
Time to Trip
Type
Voltage
Width
View Similar Products (0)

0ZRA0600FF1E Description

Short technical summary and product information.

The Bel Fuse 0ZRA0600FF1E is a polymeric PTC resettable fuse from the 0ZRA series, designed for overcurrent protection in a wide range of applications. It features a hold current of 6A at 23°C, a trip current of 10.2A, and a maximum voltage rating of 16V DC. The device can withstand fault currents up to 100A without damage.



This radial leaded component has a compact radial disc package with a lead spacing of 5.10mm and dimensions of 10.70mm length, 3.00mm width, and 17.10mm height. It operates over a temperature range of -40°C to 85°C and is AEC-Q200 qualified for automotive applications.



Key electrical characteristics include a typical power dissipation of 2.8W in the tripped state, a maximum time to trip of 5.8 seconds at specified current, and low resistance values: initial minimum resistance of 0.009Ω and post-trip maximum resistance of 0.033Ω. The device is RoHS compliant, lead-free, and halogen-free.

0ZRA0600FF1E Quick Information

Product Type: PTC Resettable Fuse
Series: 0ZRA
Canonical Name: Bel Fuse 0ZRA0600FF1E PTC Resettable Fuse, 6A Hold, 16V, Radial Disc
Subcategory: Radial Leaded PTC

0ZRA0600FF1E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

0ZRA0600FF1E Features

  • 6A hold current at 23°C still air.
  • 16V DC maximum voltage rating.
  • 100A maximum fault current capability.
  • AEC-Q200 qualified for automotive use.
  • Low resistance: 0.009Ω initial minimum.

0ZRA0600FF1E Applications

  • Overcurrent protection in automotive electronics.
  • Power supply and battery protection circuits.
  • Motor and actuator overcurrent limiting.
  • Industrial control and automation equipment.

0ZRA0600FF1E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the hold current of the 0ZRA0600FF1E?

The hold current is 6A at 23°C still air.

What is the maximum voltage rating?

The maximum voltage is 16V DC.

What is the trip current?

The trip current is 10.2A at 23°C still air.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Is this component AEC-Q200 qualified?

Yes, it is rated AEC-Q200.

What is the package type?

Radial, disc with through-hole mounting and 5.10mm lead spacing.

What is the maximum fault current?

The maximum fault current is 100A at rated voltage.
