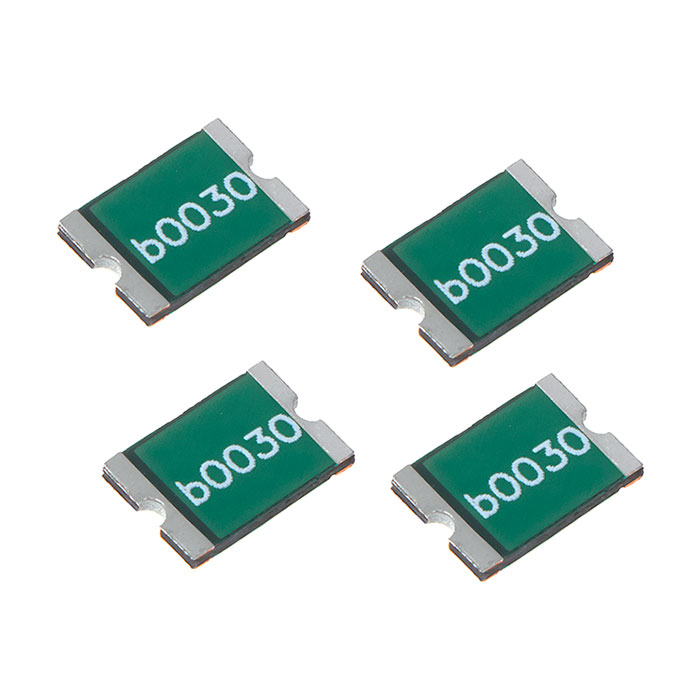

0ZCF0100AF2A The Bel Power Solutions 0ZCF0100AF2A is a surface mount PTC Resettable Fuse in a 2920 case size. It offers a hold current of 1A and a trip current of 2A.
Mfr Part #:

0ZCF0100AF2A

Available from 1 distributors
Mfr Name: Bel Power Solutions
Bel Power Solutions
The Bel Power Solutions 0ZCF0100AF2A is a surface mount PTC Resettable Fuse in a 2920 case size. It offers a hold current of 1A and a trip current of 2A.
✓ Total Stock: 7,323 pcs
$ Price Range: $0.24

0ZCF0100AF2A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
7,323 pcs
On Request
7323 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0ZCF0100AF2A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Fuse Type
Mounting Type
SVHC Present
Voltage
View Similar Products (0)

0ZCF0100AF2A Description

Short technical summary and product information.

The Bel Power Solutions 0ZCF0100AF2A is a Chip PTC resettable fuse designed for surface mount applications. It features a 2920 case size and is supplied in tape and reel packaging with 1000 pieces per reel.



Key electrical specifications include a hold current of 1A, a trip current of 2A, and a maximum current rating of 100A. The fuse operates at a voltage of up to 60VDC. Its initial resistance is 0.09 Ohms, and its post-trip resistance is 0.41 Ohms.



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is suitable for various circuit protection applications where resettable overcurrent protection is required.

0ZCF0100AF2A Quick Information

Product Type: PTC Resettable Fuse
Series: 0ZCF
Canonical Name: 0ZCF0100AF2A PTC Resettable Fuse
Subcategory: PTC Resettable Fuse

0ZCF0100AF2A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0ZCF0100AF2A Estimated Pricing

Qty Low High
1+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

0ZCF0100AF2A Features

  • Chip PTC resettable fuse.
  • 1A hold current rating.
  • 2A trip current rating.
  • 60VDC maximum voltage.
  • Surface mount 2920 package.

0ZCF0100AF2A Applications

  • Provides resettable overcurrent protection.
  • Suitable for 60 VDC circuits.
  • Handles up to 100A fault currents.
  • Surface mount design for PCB assembly.

0ZCF0100AF2A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the hold current of the 0ZCF0100AF2A?

The hold current is 1 A.

What is the trip current?

The trip current is 2 A.

What is the maximum current rating?

The maximum current rating is 100 A.

What is the maximum voltage rating?

The maximum voltage rating is 60 VDC.

What is the initial resistance?

The initial resistance is 0.09 ohms.

What is the post-trip resistance?

The post-trip resistance is 0.41 ohms.

What is the package type?

The package is a surface mount 2920 case size, supplied in tape and reel.
