0VPX.340DMA
W-IE-NE-R Power Electronics

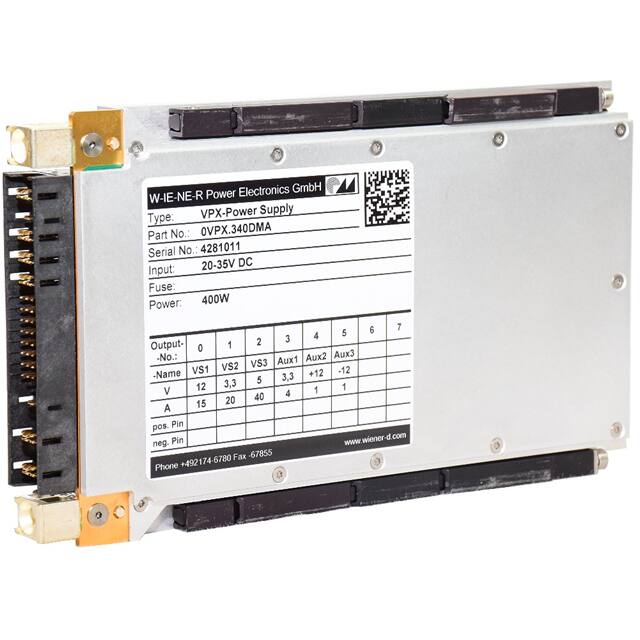

The W-IE-NE-R Power Electronics 0VPX.340DMA is a 400W DC DC converter. It features an enclosed, conformal coated design with chassis mount type.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
The W-IE-NE-R Power Electronics 0VPX.340DMA_P is a robust DC DC converter designed for various applications. This unit provides 400W of power and features six distinct outputs, including specific voltages like -12V, along with current ratings of 15A, 20A, 40A, 1A, 1A, and 4A. Its efficiency is rated at 90%.
Designed for ITE (Commercial) applications, this converter is built with an enclosed, conformal coated type and utilizes chassis mount for secure installation. The physical dimensions are 170.0mm in length, 100.0mm in width, and 20.0mm in height. It operates reliably within a temperature range of -40°C to 85°C, making it suitable for demanding environments.
Compliance information indicates RoHS3 compliance and an MSL of 1 Unlimited, with REACH status noted as unaffected. The part is identified by DK Part Number 3975-0VPX.340DMA_P-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 0VPX.340DMA_P DC DC converter has a power rating of 400W.
The 0VPX.340DMA_P offers 6 outputs.
The operating temperature range for the 0VPX.340DMA_P is -40°C to 85°C.
The 0VPX.340DMA_P uses chassis mount.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
