| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Package / Case | |
| Response Time | |
| Size | |
| Size / Dimension | |
| Tape & Reel | |
| Voltage Rating |

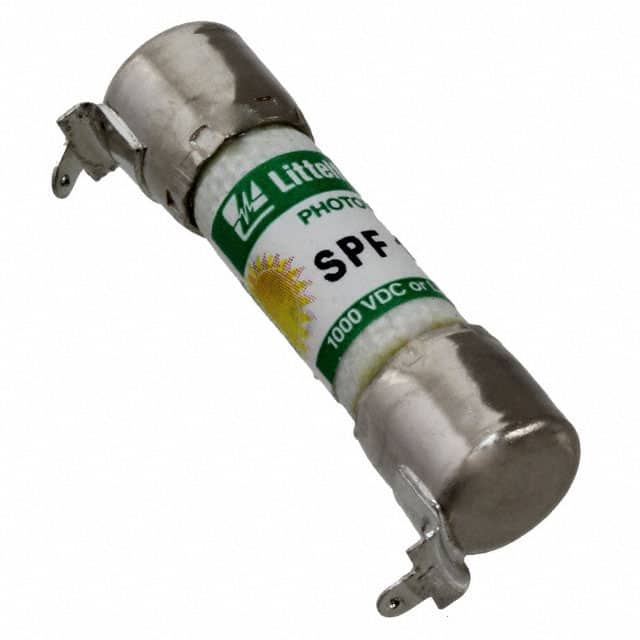

The Littelfuse 0SPF015.HXR is a cartridge fuse designed for solar photovoltaic applications. It is rated for 15A continuous current and 1kVDC voltage, with a fast blow response time.
The fuse offers a high breaking capacity of 20kA at rated voltage, ensuring reliable protection in high-energy DC circuits. It is approved by CE, CSA, and UL agencies.
The fuse comes in a 5AG (10mm x 38mm) midget package with through-hole mounting. Dimensions are 0.406" diameter by 1.500" length (10.31mm x 38.10mm).
15A.
1kVDC (1000V).
20kA at rated voltage.
Fast blow.
5AG, 10mm x 38mm (Midget) through-hole.
Solar (photovoltaic) systems.
CE, CSA, UL.
