| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Industrial Grade | |
| Mounting Type | |
| Package / Case | |
| Response Time | |
| Size | |
| Size / Dimension | |
| Tape & Reel | |
| Voltage Rating | |
| Voltage Rating DC |

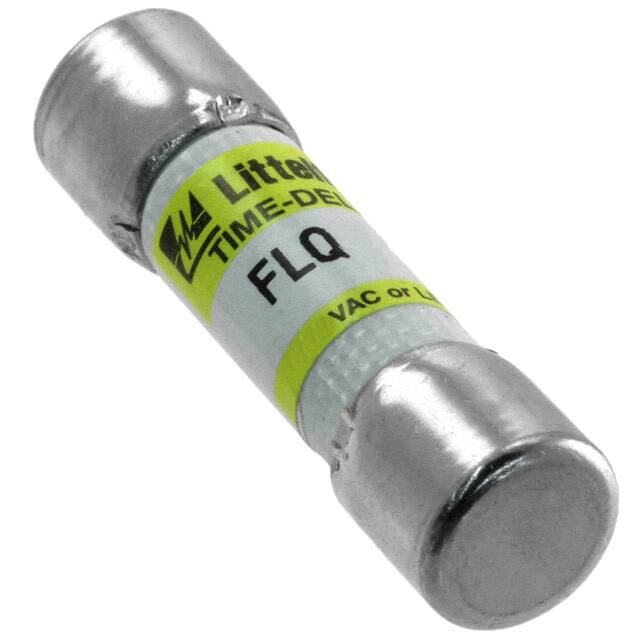

The Littelfuse 0FLQ6.25T is a slow-blow cartridge fuse designed for high inrush current applications such as transformer protection. It is rated at 6.25A with a voltage rating of 500VAC and 300VDC, providing a breaking capacity of 10kA at rated voltage. The fuse is CSA and UL approved, ensuring compliance with North American safety standards.
The fuse uses a 5AG (10mm x 38mm) package, commonly known as Midget, and requires a separate holder for installation. Its dimensions are 0.406 inches in diameter and 1.500 inches in length. The slow blow response time allows the fuse to withstand temporary overloads without nuisance tripping, making it suitable for inductive loads and transformers.
This fuse is intended for use in specialty electrical applications where high current and voltage protection is needed. The transformer protection application designation highlights its suitability for protecting power transformers from short circuits and overloads.
The current rating is 6.25 A.
The voltage rating is 500VAC and 300VDC.
The breaking capacity is 10 kA at rated voltage.
The response time is slow blow.
The package is 5AG, 10mm x 38mm (Midget).
The fuse is approved by CSA and UL.
The mounting type requires a holder.
