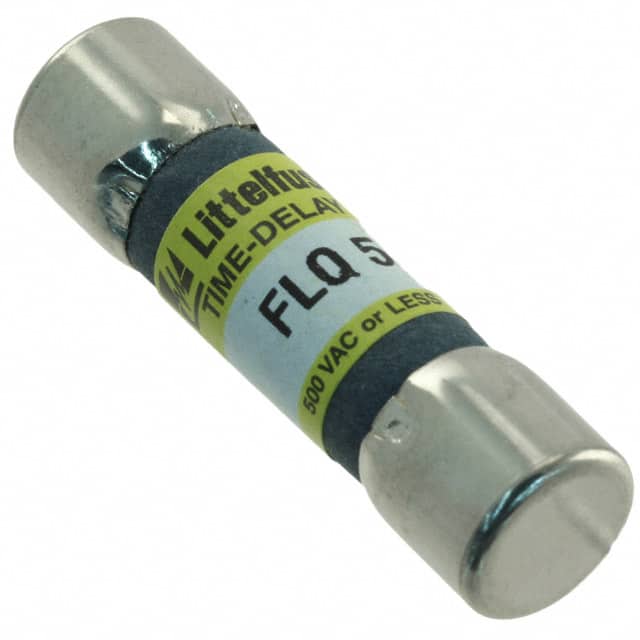

0FLQ005.T Littelfuse 0FLQ005.T is a 5A, 500VAC/300VDC cartridge fuse with a slow-blow response and 10kA interrupting rating.
Mfr Part #:

0FLQ005.T

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse 0FLQ005.T is a 5A, 500VAC/300VDC cartridge fuse with a slow-blow response and 10kA interrupting rating.
✓ Total Stock: 190 pcs

0FLQ005.T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
190 pcs
On Request
190 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0FLQ005.T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Breaking Capacity @ Rated Voltage
Current Rating
Current Rating (Amps)
Fuse Type
Halogen Free
Industrial Grade
Mounting Type
Package / Case
Response Time
SVHC Present
Size
Tape & Reel
Voltage Rating
View Similar Products (0)

0FLQ005.T Description

Short technical summary and product information.

The Littelfuse 0FLQ005.T is a 5A cartridge fuse designed for overcurrent protection in AC and DC circuits. Rated at 500VAC and 300VDC, it offers a 10kA breaking capacity, ensuring reliable fault clearing under high-energy conditions. Its slow-blow (time-delay) characteristic makes it suitable for applications with high inrush currents, such as transformer protection.



This fuse uses a 5AG (10mm x 38mm) package with dimensions of 0.406" diameter by 1.500" length, and requires a holder for mounting. It is approved by CSA and UL, indicating compliance with North American safety standards.



Typical applications include protecting transformers and other inductive loads where temporary overcurrents during startup are common. The fuse's voltage and breaking capacity ratings support use in industrial and commercial power systems.

0FLQ005.T Quick Information

Product Type: Cartridge Fuse
Series: FLQ
Canonical Name: Littelfuse 0FLQ005.T 5A 500VAC/300VDC Slow-Blow Cartridge Fuse
Subcategory: Electrical, Specialty Fuses

0FLQ005.T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

0FLQ005.T Features

  • Cartridge fuse rated for 5A continuous current.
  • Operates at up to 500VAC or 300VDC.
  • 10kA breaking capacity for high-fault applications.
  • Slow-blow response time handles inrush currents.
  • 5AG (10x38mm) package requires a holder.

0FLQ005.T Applications

  • Protects transformers against overcurrent faults.
  • Suitable for AC and DC power distribution circuits.
  • Used in industrial equipment with high inrush startup.

0FLQ005.T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the 0FLQ005.T fuse?

The 0FLQ005.T is rated for 5A continuous current.

What voltage ratings does this fuse support?

It is rated at 500VAC and 300VDC.

What is the breaking capacity of this fuse?

The breaking capacity is 10kA at rated voltage.

Is this a fast-acting or slow-blow fuse?

It has a slow-blow (time-delay) response.

What is the package size and mounting style?

Package is 5AG, 10mm x 38mm (0.406" x 1.500"). Mounting requires a holder.

What agency approvals does this fuse have?

It is approved by CSA and UL.
