| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Cold Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Pre-arcing I²t | |
| Response Time | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Voltage Drop | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC |

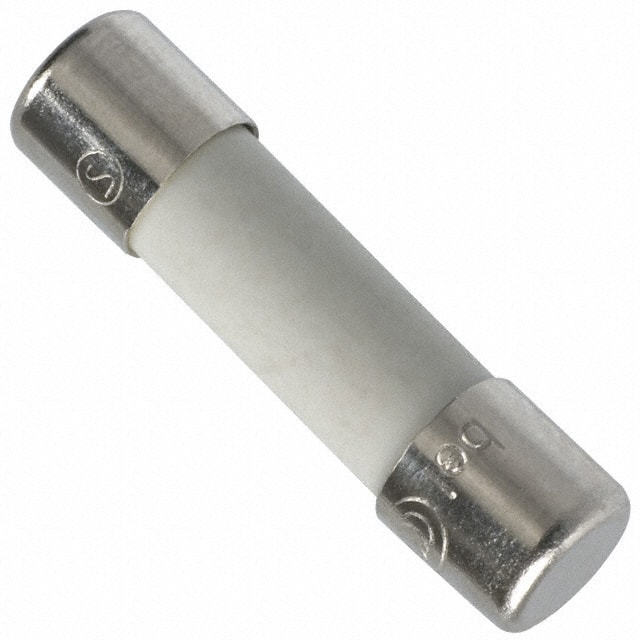

The Bel Fuse 0ADKC6300-BE is a ceramic tube cartridge fuse from the 0ADKC series, designed for time-delay overcurrent protection. It is rated for 6.3A continuous current with a voltage rating of 600VAC and 500VDC. The fuse offers a high breaking capacity of 200A AC and 300A DC, suitable for demanding applications. Its slow blow response time accommodates inrush currents without nuisance opening. The 5x20mm package requires a holder for mounting, and the ceramic body with silver plated copper caps ensures robust performance. Electrical characteristics include a typical cold resistance of 13 mOhms, voltage drop of 100 mV, and pre-arcing I²t of 80 A²s. The operating temperature range is -55°C to 125°C. The fuse is cURus approved and complies with RoHS, lead-free, and halogen-free requirements, making it suitable for industrial power supplies and DC/DC converters.
The current rating is 6.3 A.
It is rated for 600 VAC and 500 VDC.
The breaking capacity is 200 A AC and 300 A DC.
It is a slow blow (time-delay) fuse.
The package is 5mm x 20mm (0.205" Dia x 0.787" L).
The melting I²t is 80 A²s.
It is cURus approved.
