| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating (Amps) | |
| Flammability Rating | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Melting I²t | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Standards | |
| Tape & Reel | |
| Terminal Material | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| Voltage Rating | |
| Voltage Rating DC | |
| Weight | |
| Width |

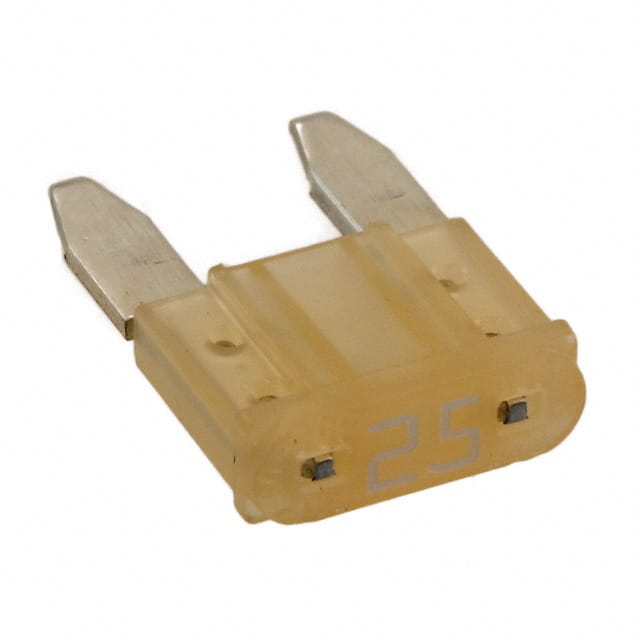

The Littelfuse 0997025.WXN is a MINI Series 58V automotive blade fuse rated at 25A. It features a fast blow response time and a breaking capacity of 1000A at 58V DC, making it suitable for overcurrent protection in automotive electrical systems. The fuse has a typical voltage drop of 86 mV and a cold resistance of 2.36 mΩ.
The fuse is housed in a clear PA66 plastic body with a UL94 V-2 flammability rating. Terminals are silver-plated zinc alloy for reliable conductivity. The miniature blade package measures 10.90mm x 3.80mm x 8.80mm and weighs 0.57 g. It requires a holder for mounting.
This fuse complies with SAE J2077, SAE 2576, ISO 8820, and UL 248 Special Purpose Fuses standards. It is designed for use in cars, SUVs, trucks, off-road vehicles, and buses.
The 0997025.WXN is rated at 25A.
The voltage rating is 58V DC.
The breaking capacity is 1000A at 58V DC.
The response time is fast blow.
The fuse comes in a miniature blade package.
The operating temperature range is -40°C to 125°C.
It complies with SAE J2077, SAE 2576, ISO 8820, and UL 248 Special Purpose Fuses.
