| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,558 pcs
|
5558 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
880 pcs
|
880 pcs | On Request | 1 | 58 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating (Amps) | |
| Flammability Rating | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Interrupting Rating | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Tape & Reel | |
| Terminal Material | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| Voltage Rating | |
| Weight | |
| Width |

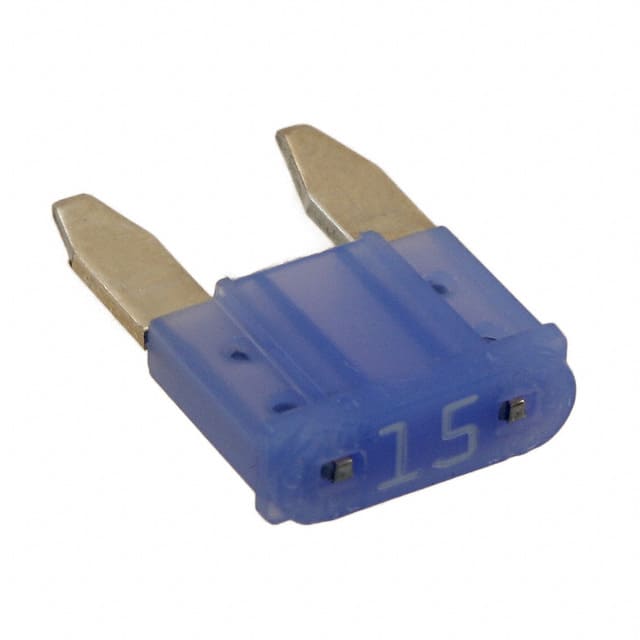

The Littelfuse 0997015.WXN is a MINI series blade fuse designed for automotive applications. Rated at 15A and 58V DC, it provides fast blow overcurrent protection with a breaking capacity of 1000A at rated voltage. The fuse features a blue housing made of PA66 with UL 94 V-2 flammability rating, and silver-plated zinc alloy terminals for reliable conductivity. Typical voltage drop is 98 mV at 15A, with cold resistance of 4.58 mΩ and melting I²t of 270 A²s. Operating temperature range is -40°C to 125°C. The fuse requires a holder for mounting and measures 10.90mm x 3.80mm x 8.80mm. It complies with SAE J2077, SAE 2576, ISO 8820, and UL 248 standards. This fuse is suitable for circuit protection in cars, SUVs, trucks, and other vehicles as approved by Littelfuse.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.04 | $1.04 |
| 5+ | $0.86 | $0.86 |
| 10+ | $0.75 | $0.75 |
| 50+ | $0.66 | $0.66 |
| 100+ | $0.61 | $0.61 |
| 250+ | $0.55 | $0.55 |
| 500+ | $0.50 | $0.50 |
| 3,000+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 A.
58 V DC.
1000 A at 58 V DC.
Fast Blow.
Blade, Miniature.
-40°C to 125°C.
Housing: PA66, Terminals: Silver-plated zinc alloy.
