| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
910 pcs
|
910 pcs | On Request | 1 | 58 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Cold Resistance | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Standard Package Quantity | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Test Cable Size | |
| Voltage Drop | |
| Voltage Rating | |
| Weight | |
| Width |

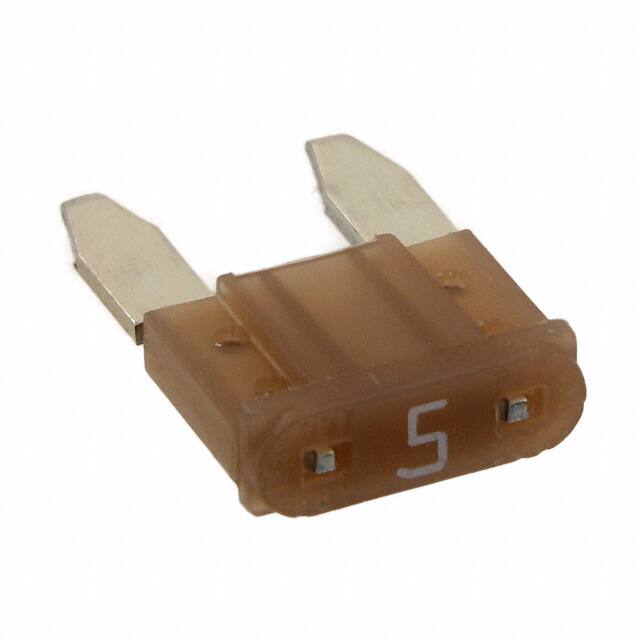

The Littelfuse 0997005.WXN is a MINI 58V series blade fuse designed for automotive and other DC circuit protection applications. It is rated for 5A continuous current at 58V DC with a fast blow response time and a breaking capacity of 1000A at rated voltage.
The fuse features a miniature blade package with silver-plated zinc alloy terminals and a PA66 housing (UL 94 V-2). It operates over a temperature range of -40°C to 125°C. Typical voltage drop is 129 mV at rated current, with a cold resistance of 17.75 mΩ and melting I²t of 25 A²s. The tan color indicates the 5A ampere rating per industry standard color coding.
This fuse requires a compatible holder for mounting and is suitable for use in cars, SUVs, trucks, off-road vehicles, buses, and watercraft as approved by Littelfuse. It complies with SAE J2077, SAE 2576, ISO 8820, and UL 248 Special Purpose Fuses.
The 0997005.WXN is rated for 5A continuous current.
The voltage rating is 58V DC.
The breaking capacity is 1000A at 58V DC.
The response time is fast blow.
It uses a blade, miniature package (MINI blade).
The operating temperature range is -40°C to 125°C.
The 5A MINI blade fuse is tan in color.
