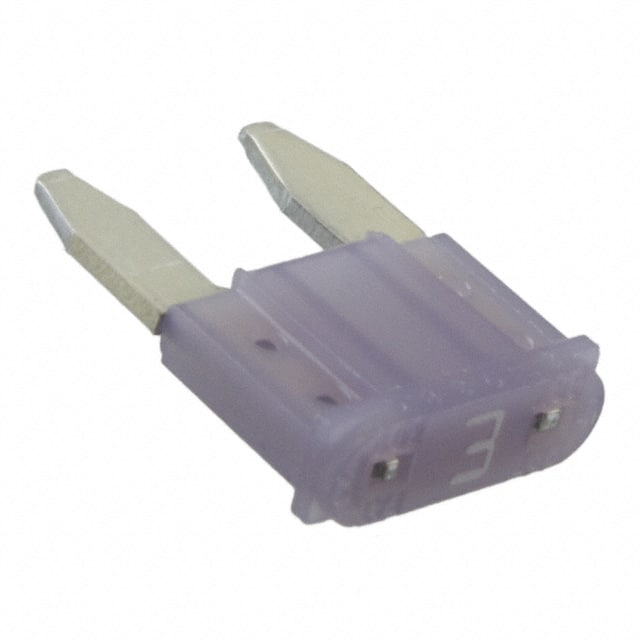

0997003.WXN Littelfuse MINI 58V 3A fast blow automotive blade fuse rated 58V DC with 1kA interrupting capacity.
Mfr Part #:

0997003.WXN

Available from 2 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse MINI 58V 3A fast blow automotive blade fuse rated 58V DC with 1kA interrupting capacity.
✓ Total Stock: 625 pcs

0997003.WXN Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
590 pcs
590 pcs On Request 1 58 On Request On Request On Request On Request
Non-Authorised Inventory information
35 pcs
35 pcs On Request 1 On Request On Request On Request On Request On Request

0997003.WXN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Breaking Capacity @ Rated Voltage
Color
Current Rating
Current Rating (Amps)
Fuse Type
Height
Housing Material
Industrial Grade
Length
Medical Grade
Melting I²t
Military Grade
Mounting Type
Operating Temperature
Package / Case
Response Time
Tape & Reel
Voltage Rating
Width

0997003.WXN Description

Short technical summary and product information.

The Littelfuse 0997003.WXN is a MINI series 58V blade fuse rated at 3A with a fast blow response time. It is designed for automotive circuit protection in cars, SUVs, trucks, offroad vehicles, buses, and watercraft as approved by Littelfuse.



Electrical specifications include a voltage rating of 58V DC, interrupting rating of 1000A at 58V DC, typical voltage drop of 153 mV, typical cold resistance of 33.75 mΩ, and melting I²t of 9.4 A²s. The fuse operates over a temperature range of -40°C to 125°C.



The fuse features a violet PA66 housing with a UL 94 V-2 flammability rating and silver-plated zinc alloy terminals. Mechanical dimensions are 10.90mm length, 3.80mm width, and 8.80mm height, with a typical weight of 0.57g. It uses a blade, miniature package and requires a holder for mounting.

0997003.WXN Quick Information

Product Type: Automotive Blade Fuse
Series: MINI 58V
Canonical Name: Littelfuse MINI 58V 3A Fast Blow Automotive Blade Fuse
Subcategory: Automotive Fuses

0997003.WXN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0997003.WXN Features

  • Rated 3A at 58V DC operation.
  • Fast blow response time for sensitive circuits.
  • 1kA interrupting capacity at rated voltage.
  • Violet PA66 housing with UL 94 V-2 rating.
  • Silver-plated zinc alloy terminals.

0997003.WXN Applications

  • Used in automotive circuit protection applications.
  • Suitable for cars, SUVs, and trucks.
  • Ideal for offroad vehicle electrical systems.
  • Compatible with MINI blade fuse holders.

0997003.WXN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 0997003.WXN?

The current rating is 3 A.

What is the voltage rating of this fuse?

The voltage rating is 58 V DC.

What is the breaking capacity of the 0997003.WXN?

The breaking capacity is 1kA at 58 V DC.

What is the response time of this fuse?

The response time is fast blow.

What package type does the 0997003.WXN use?

The fuse uses a blade, miniature package and requires a holder for mounting.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What is the housing material and flammability rating?

The housing is made of PA66 with a UL 94 V-2 flammability rating.
