| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
940 pcs
|
940 pcs | On Request | 1 | 58 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Interrupting Rating | |
| Lead Style | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Tape & Reel | |
| Terminal Material | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| Typical Weight | |
| Voltage Rating | |
| Width |

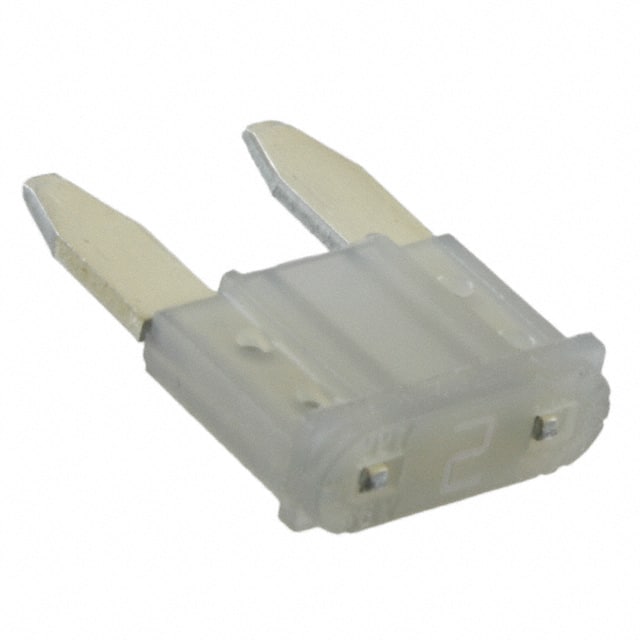

The Littelfuse 0997002.WXN is a MINI series 58V blade fuse designed for reliable overcurrent protection in automotive and related DC applications. This fast blow fuse is rated for 2A of continuous current at 58V DC and offers a breaking capacity of 1000A at rated voltage.
Key electrical characteristics include a typical voltage drop of 171 mV and a typical cold resistance of 55.60 mΩ. The melting I²t is 2.8 A²s. The fuse is housed in a miniature blade package with a gray PA66 housing and silver-plated zinc alloy terminals. It requires a separate holder for mounting.
This fuse is designed to comply with SAE J2077, SAE 2576, ISO 8820, and UL 248 standards for special purpose fuses. It operates over a temperature range of -40°C to 125°C and weighs approximately 0.57 grams.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.04 | $1.04 |
| 5+ | $0.86 | $0.86 |
| 10+ | $0.77 | $0.77 |
| 50+ | $0.66 | $0.66 |
| 100+ | $0.60 | $0.60 |
| 250+ | $0.55 | $0.55 |
| 500+ | $0.50 | $0.50 |
| 1,000+ | $0.48 | $0.48 |
| 3,000+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 0997002.WXN fuse has a current rating of 2 A.
The voltage rating is 58 V DC.
The breaking capacity is 1000 A at 58 V DC.
It is a fast blow fuse.
The fuse comes in a Blade, Miniature package.
The operating temperature range is -40°C to 125°C.
The typical voltage drop is 171 mV.
