| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

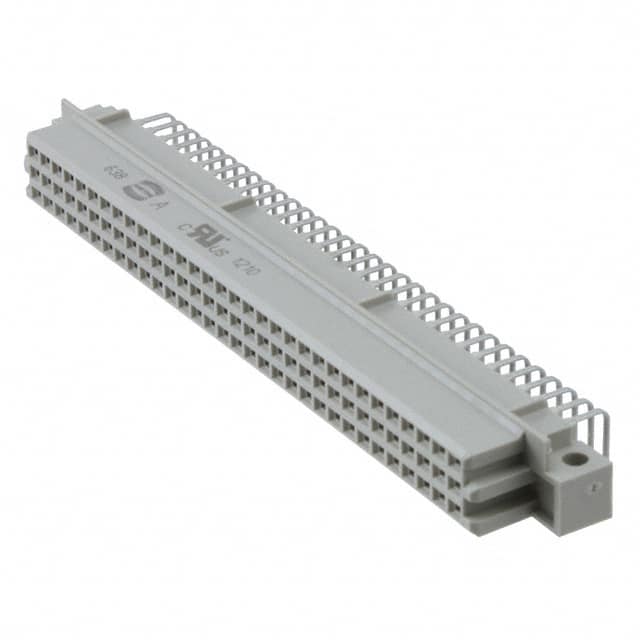

The Harting 09732966801 is a DIN 41612 Type R (style R) receptacle connector designed for backplane and rack-and-panel applications. It provides 96 female socket contacts in a 3-row configuration with all positions loaded, ensuring full signal routing capability.
This connector uses a standard 2.54mm (0.100") pitch and terminates via through-hole right-angle solder tails, enabling perpendicular board-to-board connections. It is rated to Level/Class 2, indicating a standard industrial-grade reliability level.
The part is packaged for through-hole mounting and uses a receptacle (female) interface, mating with DIN 41612 male headers. Compliance with RoHS3, REACH, and MSL 1 (unlimited floor life) is indicated, though unverified.
96 positions (female sockets) in 3 rows, all positions loaded.
2.54mm (0.100 inches).
Through hole, right angle with solder termination.
Receptacle, female sockets, style R (DIN 41612 Type R).
Level/Class 2.
