| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

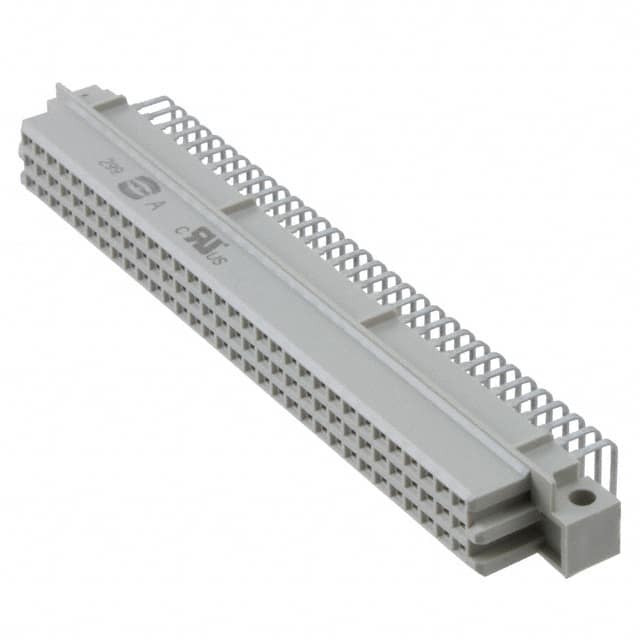

The Harting 09732646801 is a DIN 41612 receptacle connector designed for backplane and rack-and-panel applications. It features a 96-position layout with 64 positions loaded across 3 rows, using a standard 2.54mm (0.100") pitch. The connector uses a right-angle through-hole mounting style with solder termination, making it suitable for perpendicular board-to-board connections.
This connector is classified as Level/Class 2, indicating a standard level of performance and reliability for industrial and commercial electronic systems. The receptacle design with female sockets ensures secure mating with compatible DIN 41612 male headers.
Typical applications include telecommunications equipment, industrial control systems, and computer backplanes where reliable high-density interconnections are required. The right-angle orientation allows for efficient use of board space in compact enclosures.
It is a DIN 41612 receptacle with female sockets.
It has 96 positions total, with 64 positions loaded.
The pitch is 2.54mm (0.100").
Through hole, right angle mounting.
It has 3 rows.
Solder termination.
