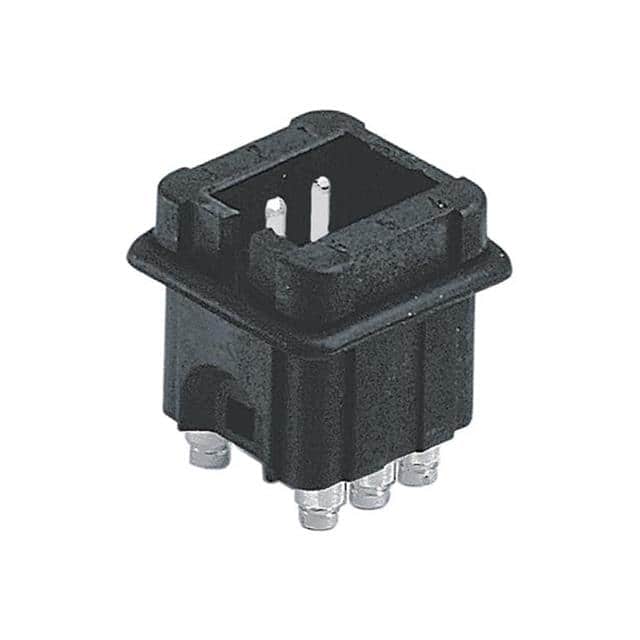

09700062615 Harting Han 09 3A male connector insert with 6 positions, solder termination, rated 10A and 50V, silver plated contacts.
Mfr Part #:

09700062615

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han 09 3A male connector insert with 6 positions, solder termination, rated 10A and 50V, silver plated contacts.
✓ Total Stock: 7 pcs

09700062615 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09700062615 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating
Current Rating (Amps)
Gender
Number of Positions
Operating Temperature
SVHC Present
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

09700062615 Description

Short technical summary and product information.

The Harting 09700062615 is a heavy duty connector insert from the Han 09 3A series. It features a male gender configuration with 6 positions and uses solder termination for secure wire connections. The insert is rated for 10A continuous current and 50V voltage (note: datasheet indicates 25V, verify before use). Operating temperature range is -40°C to 100°C. Contacts are silver plated for reliable conductivity. The insert size is 3A, typical for industrial connector applications requiring compact yet robust interconnects for power and signal transmission. Designed for use with corresponding Han housings and accessories.

09700062615 Quick Information

Product Type: Heavy Duty Connector Insert
Series: 09 3A
Canonical Name: Harting Han 09 3A Heavy Duty Connector Insert, Male, 6 Positions, Solder Termination
Subcategory: Male Insert

09700062615 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

09700062615 Features

  • 6 position male connector insert.
  • Solder termination for reliable connections.
  • Rated for 10A current and 50V voltage.
  • Silver plated contact surface.
  • Operating temperature -40°C to 100°C.

09700062615 Applications

  • Industrial control cabinet wiring.
  • Machine tool interconnect systems.
  • Power and signal distribution modules.
  • Heavy duty equipment connections.

09700062615 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does this Harting insert have?

6 positions.

What is the current rating of the 09700062615?

10 A.

What termination style does this insert use?

Solder termination.

What is the operating temperature range?

-40°C to 100°C.
