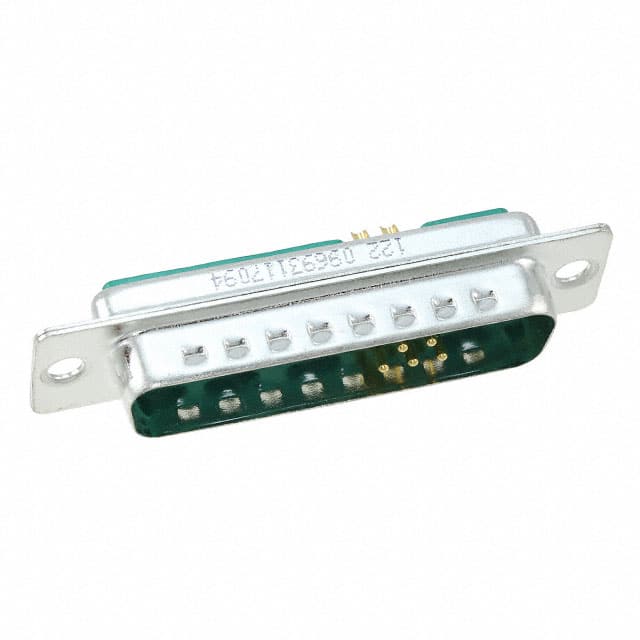

The Harting 09693117094 is a D-Sub combo plug featuring male pins in a 9W4 layout (5 signal contacts and 4 coax or power positions). It belongs to the D-Sub DIN 41652 T1 series and has a shell size 3 (DB, B) - 9W4. Termination is via solder cups suitable for AWG 20 wire. The connector is designed for free hanging (in-line) mounting with an unthreaded flange.
Mechanical construction includes a steel shell with tin plating for EMI shielding and grounding indents for improved ground connection. The material flammability rating is UL94 V-0, and it meets performance level 3 per DIN 41652. The signal contacts are pre-mounted in the shell, while coax or power contacts must be ordered separately.
Electrically, the connector is rated for 5A per contact. The combination of signal and power/coax positions in a compact D-Sub form factor makes it suitable for applications requiring mixed connectivity in industrial control, data communication, instrumentation, and automation equipment.
9 positions, configured as 5 signal contacts and 4 coax or power contacts.
5A per contact.
Free hanging (in-line) mounting.
Solder cup termination for AWG 20 wire.
Steel shell with tin plating.
UL94 V-0.
